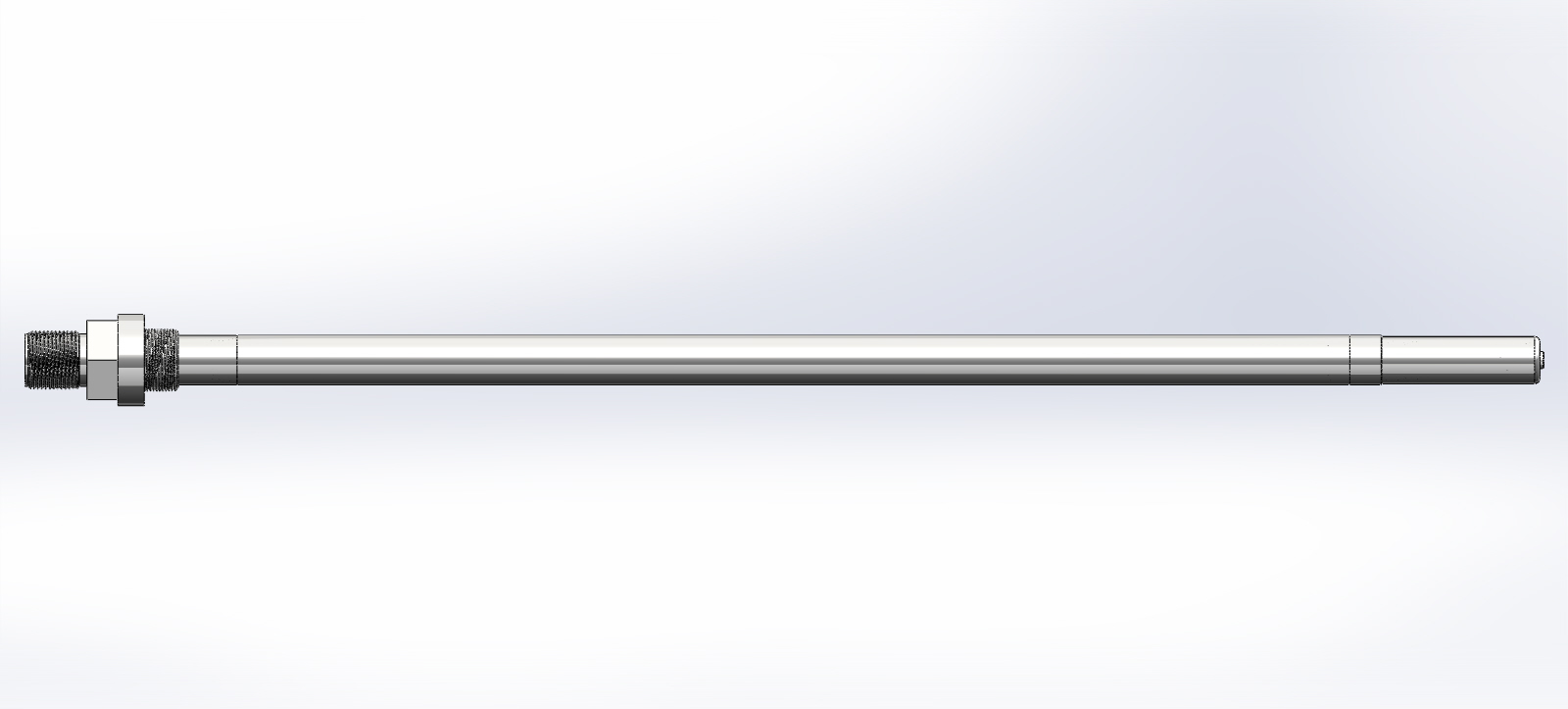

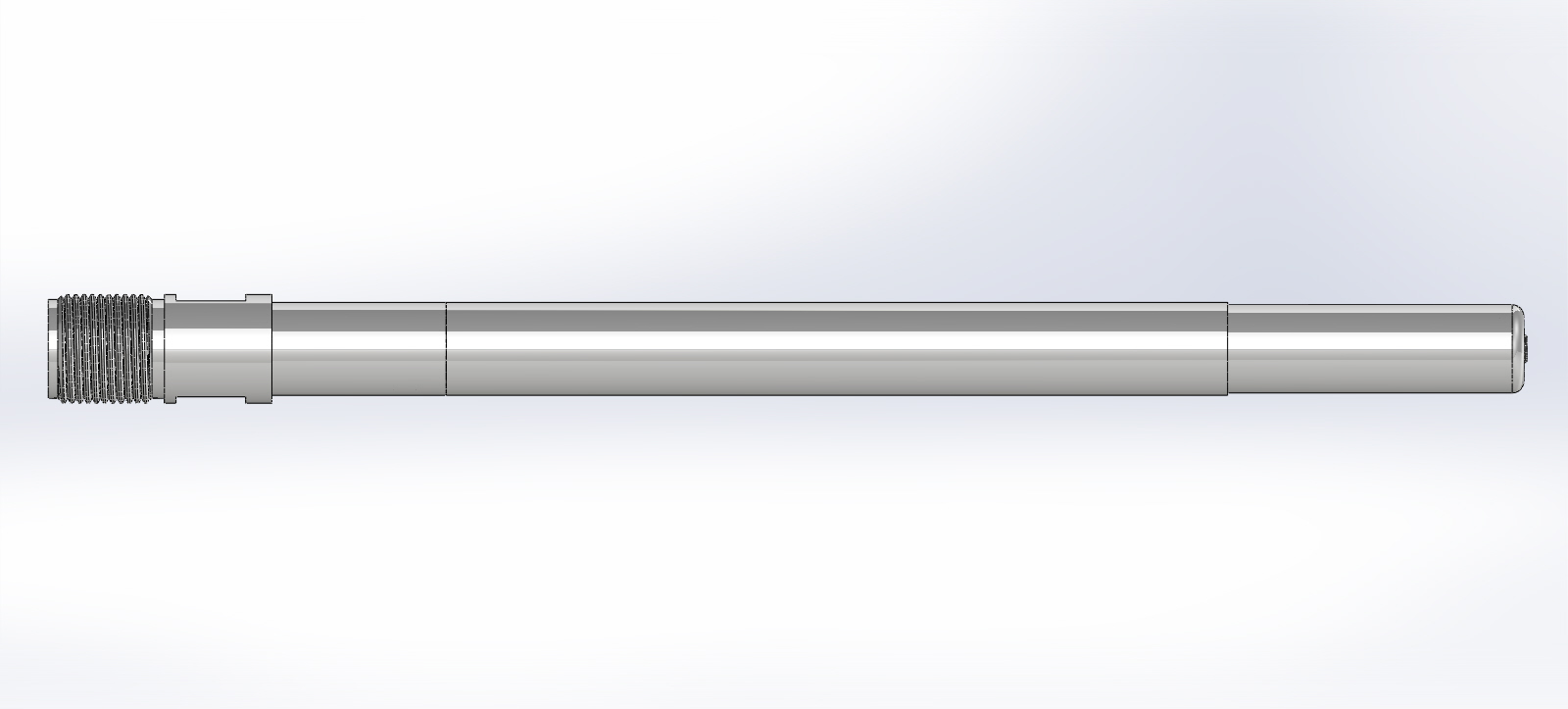

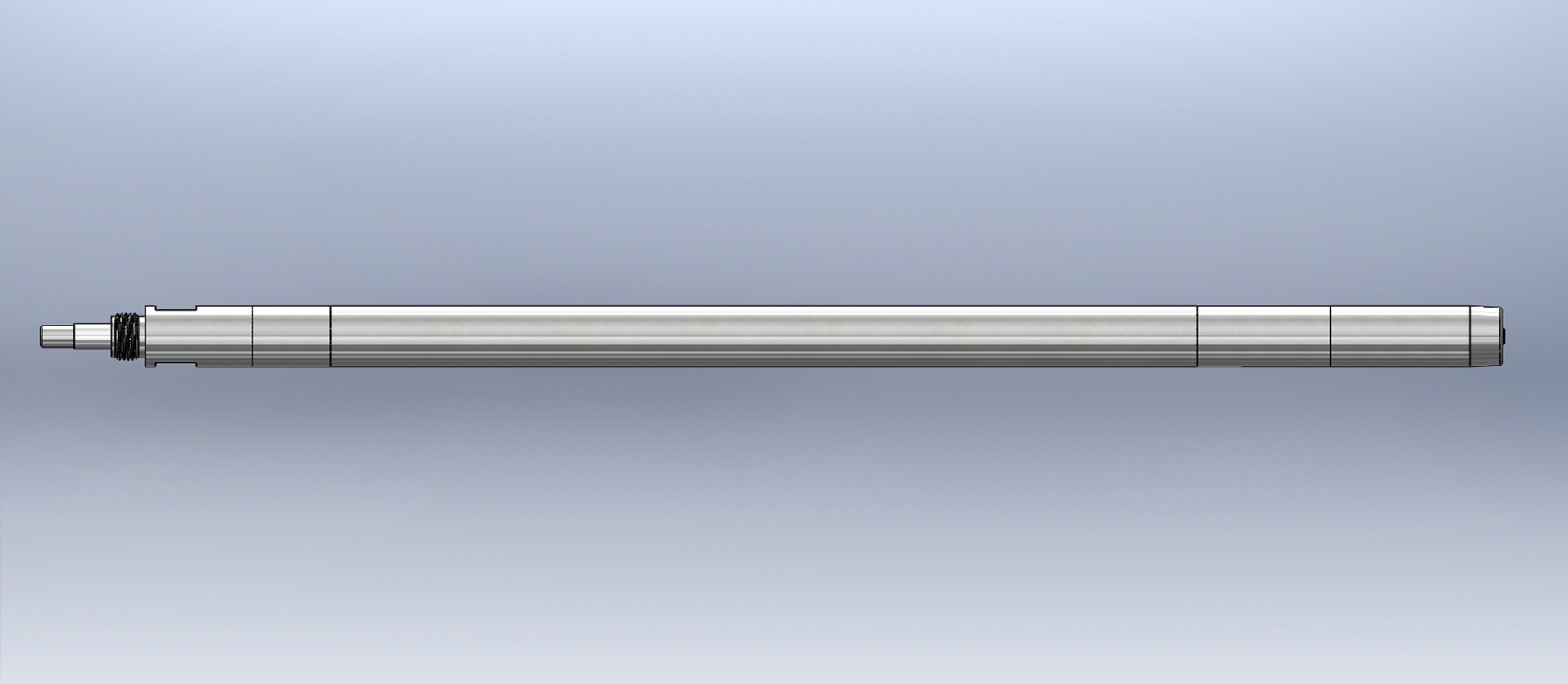

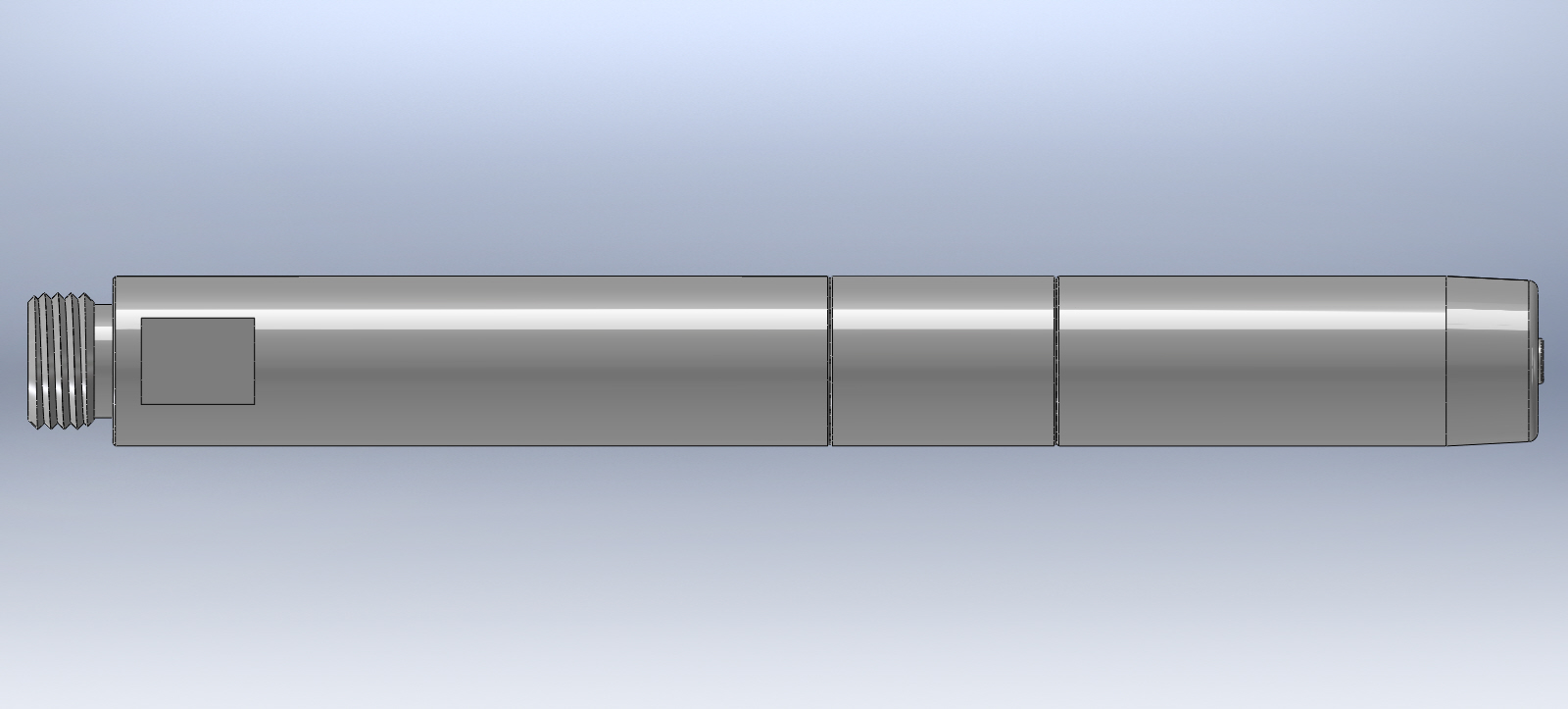

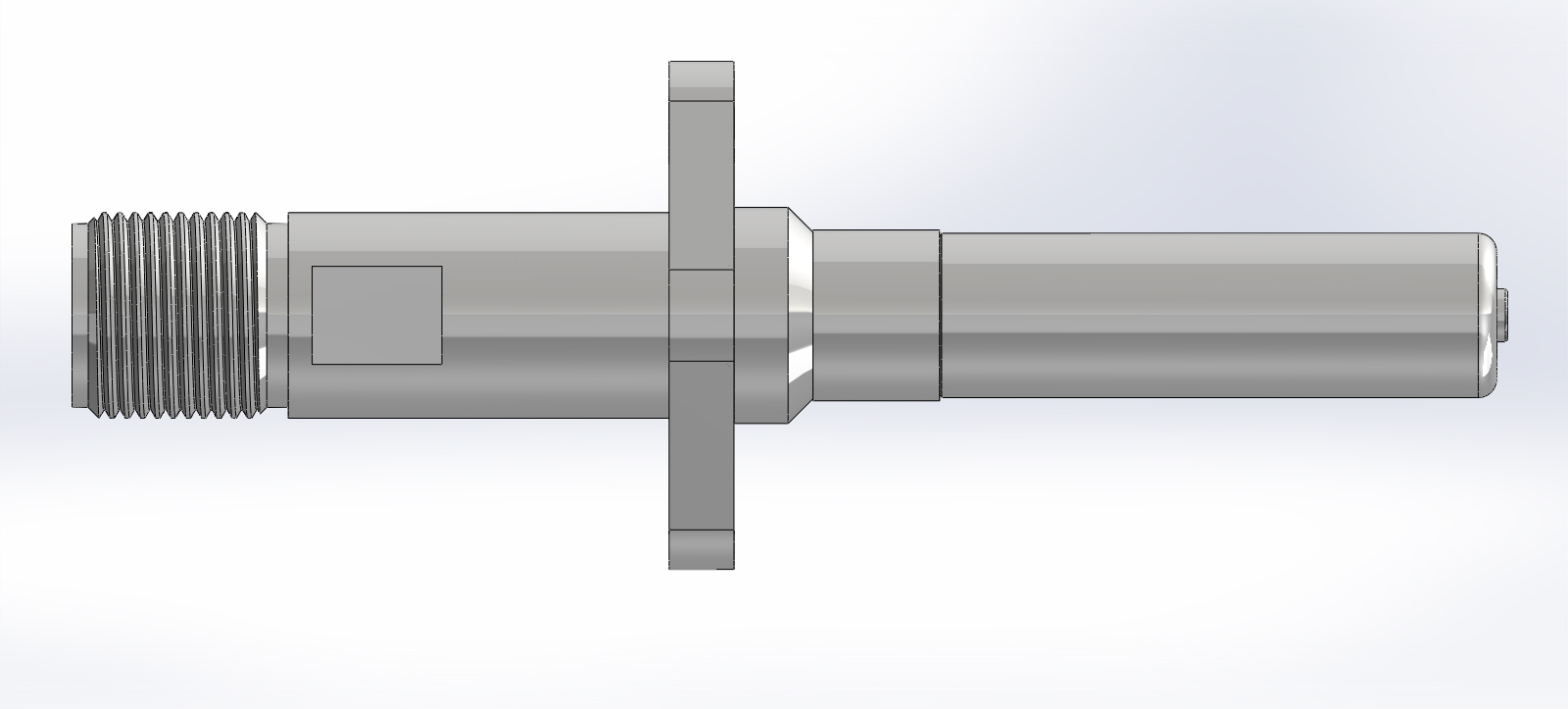

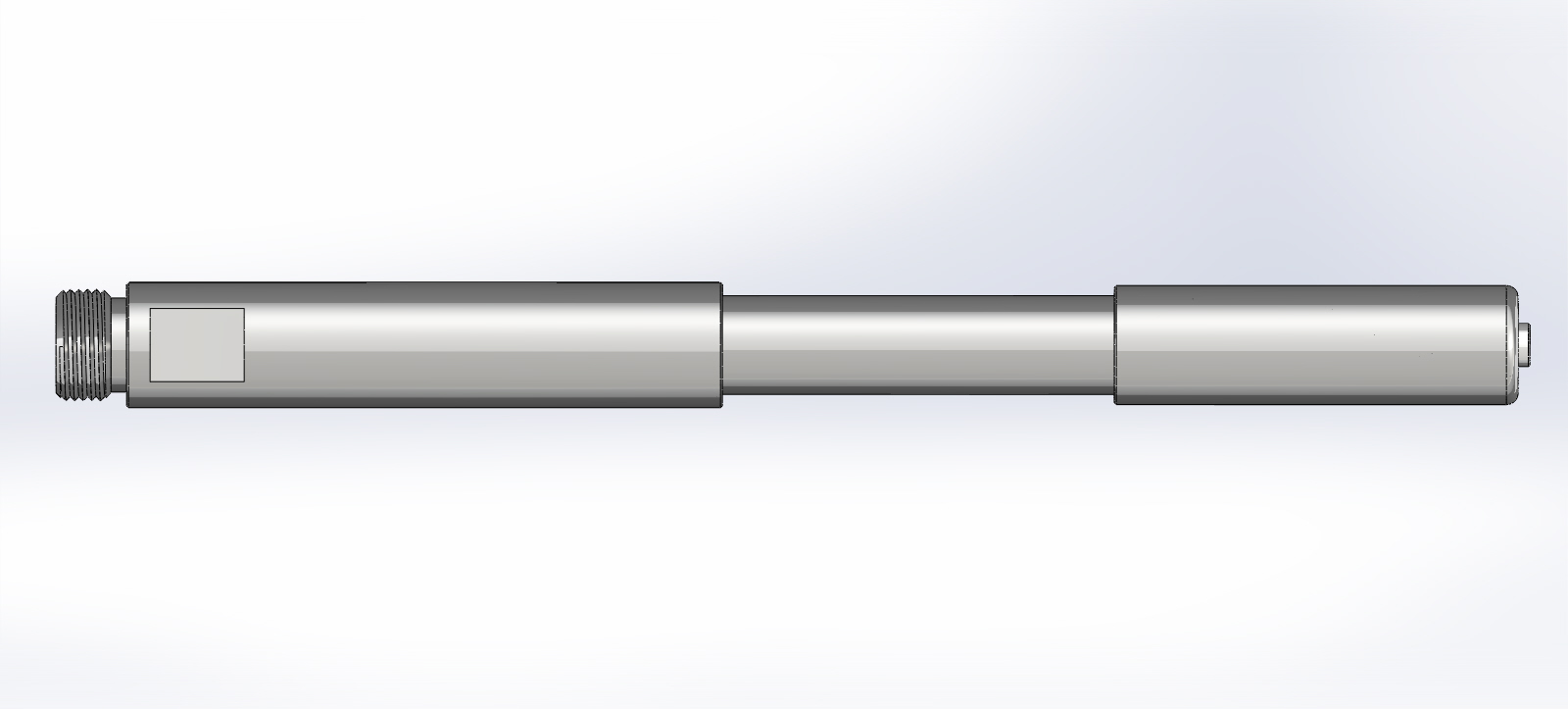

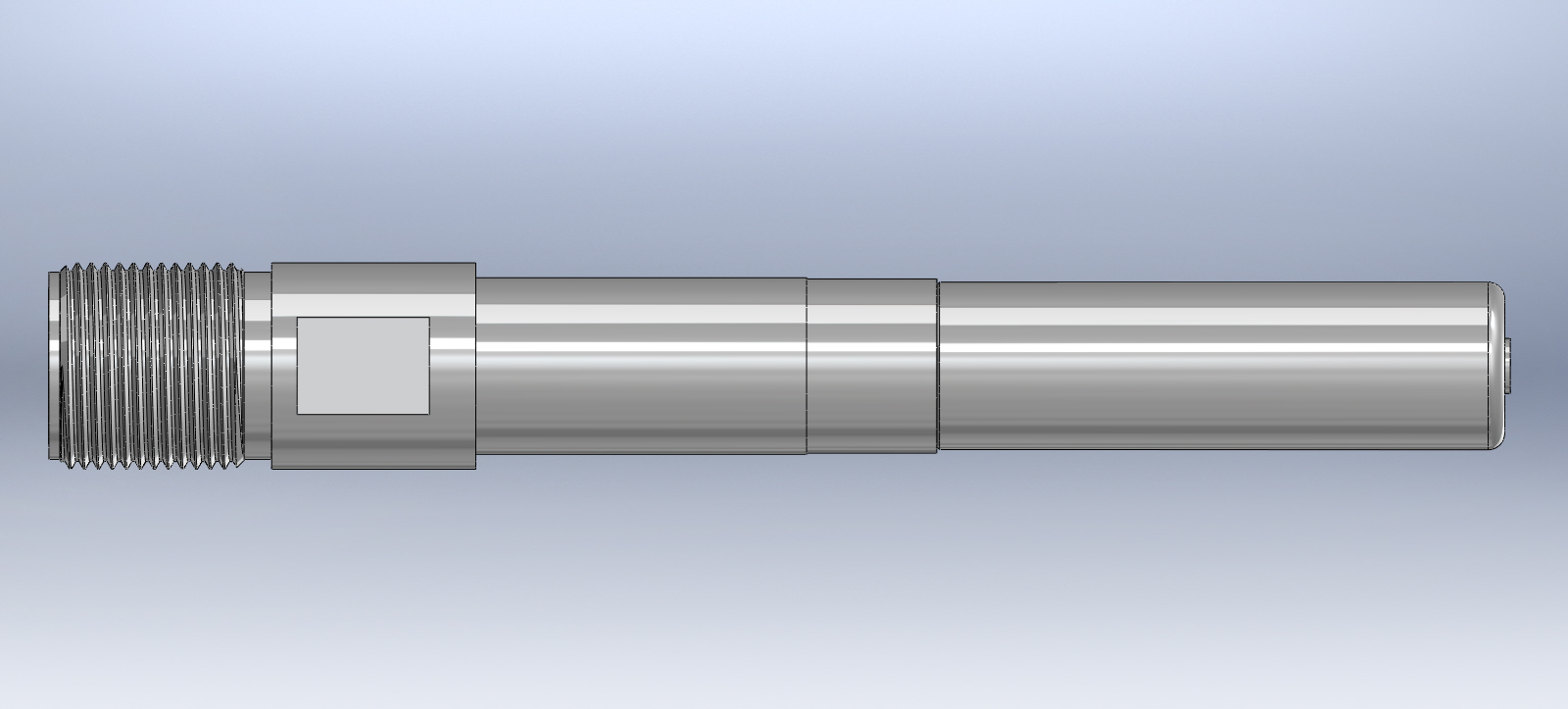

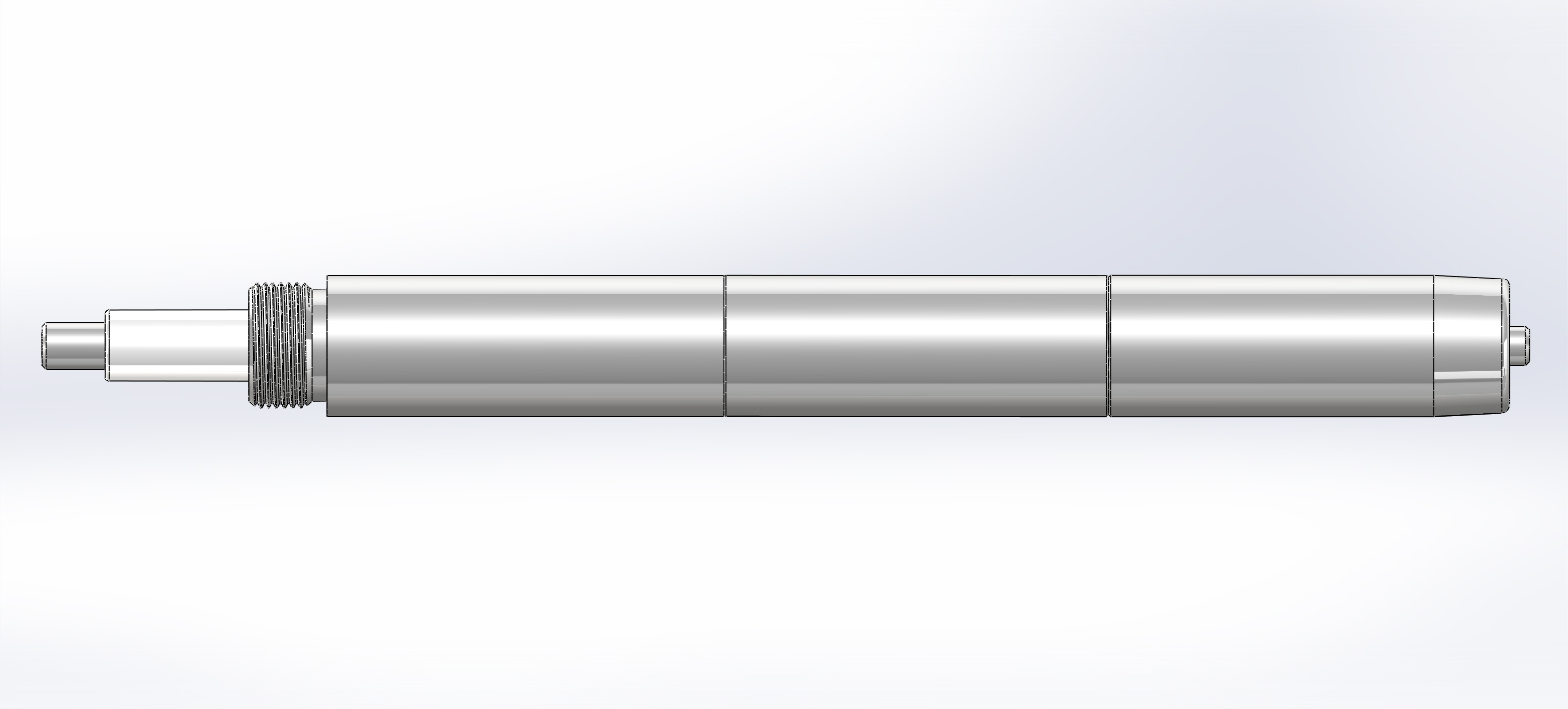

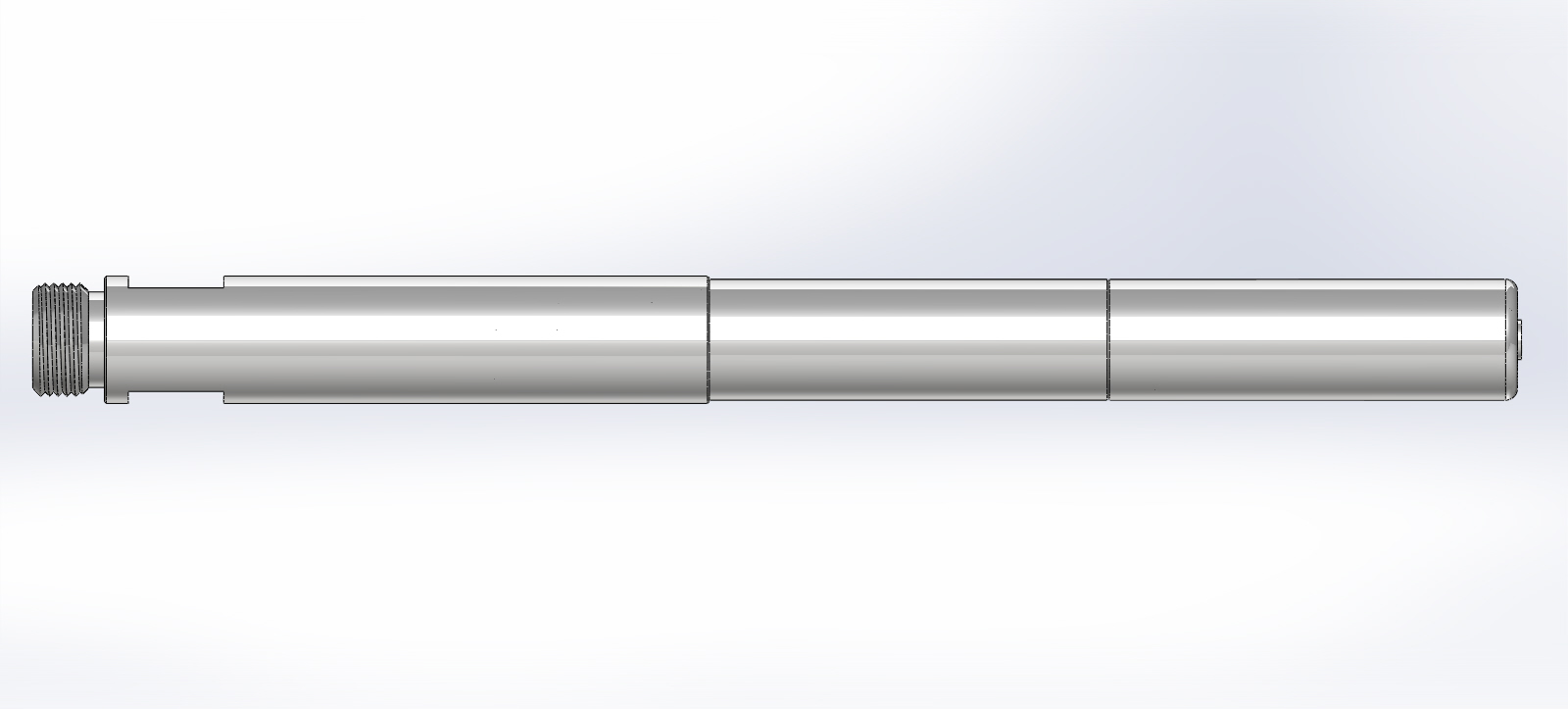

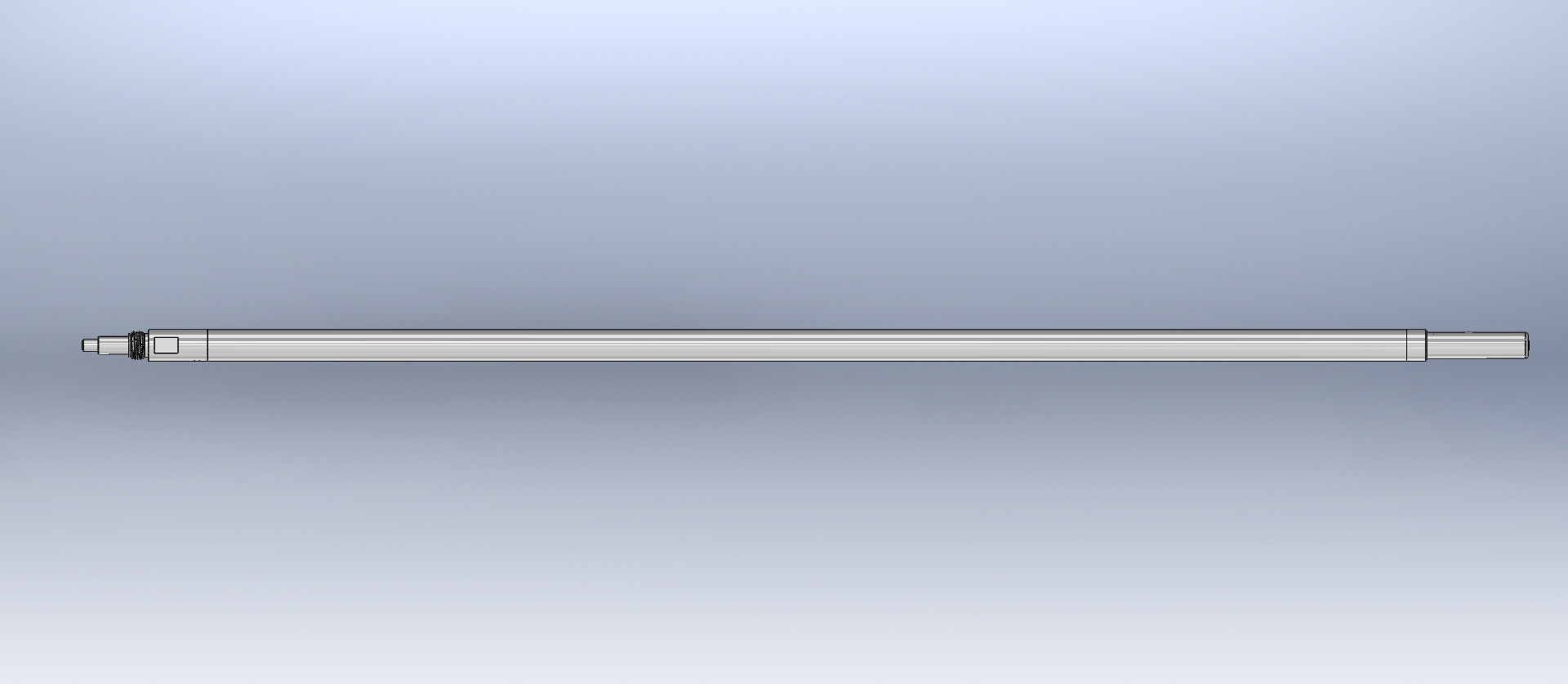

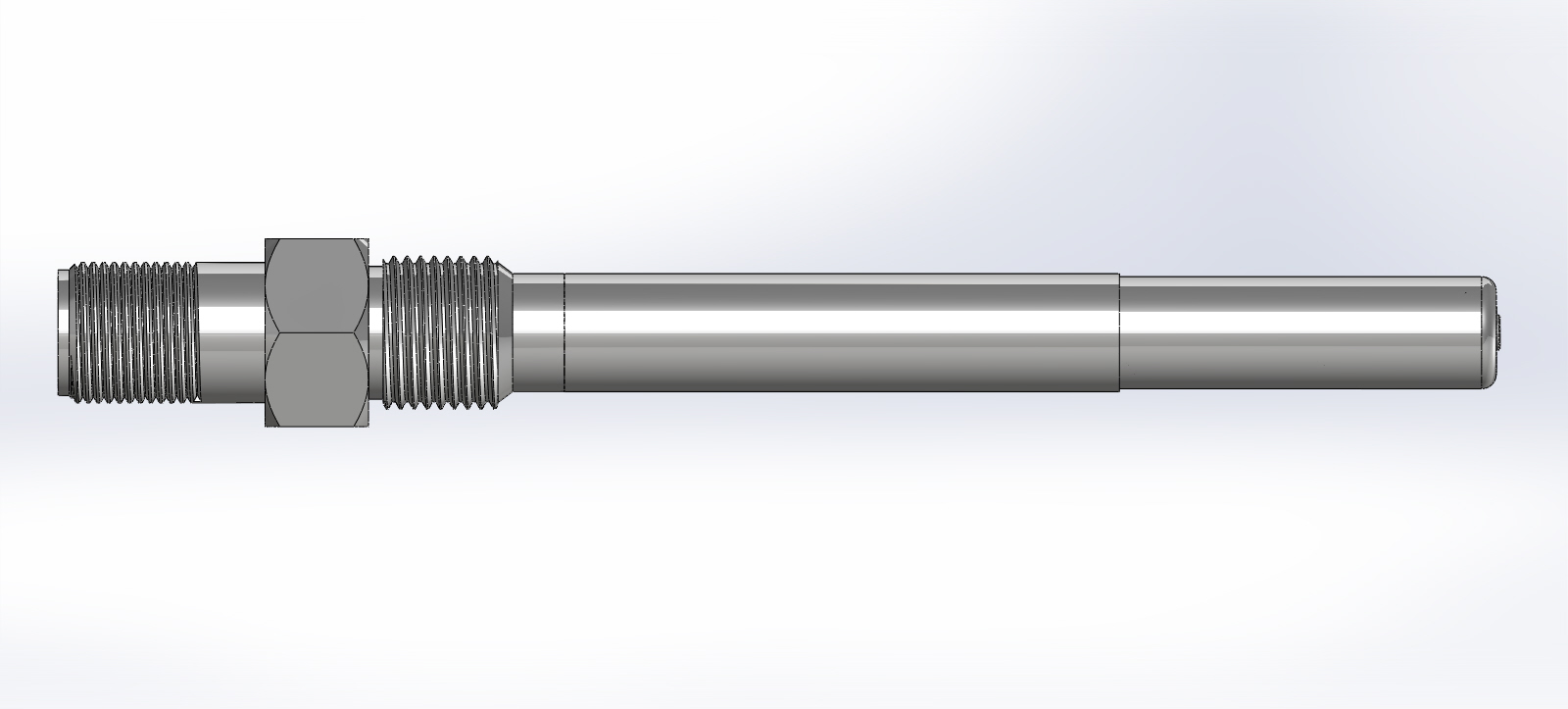

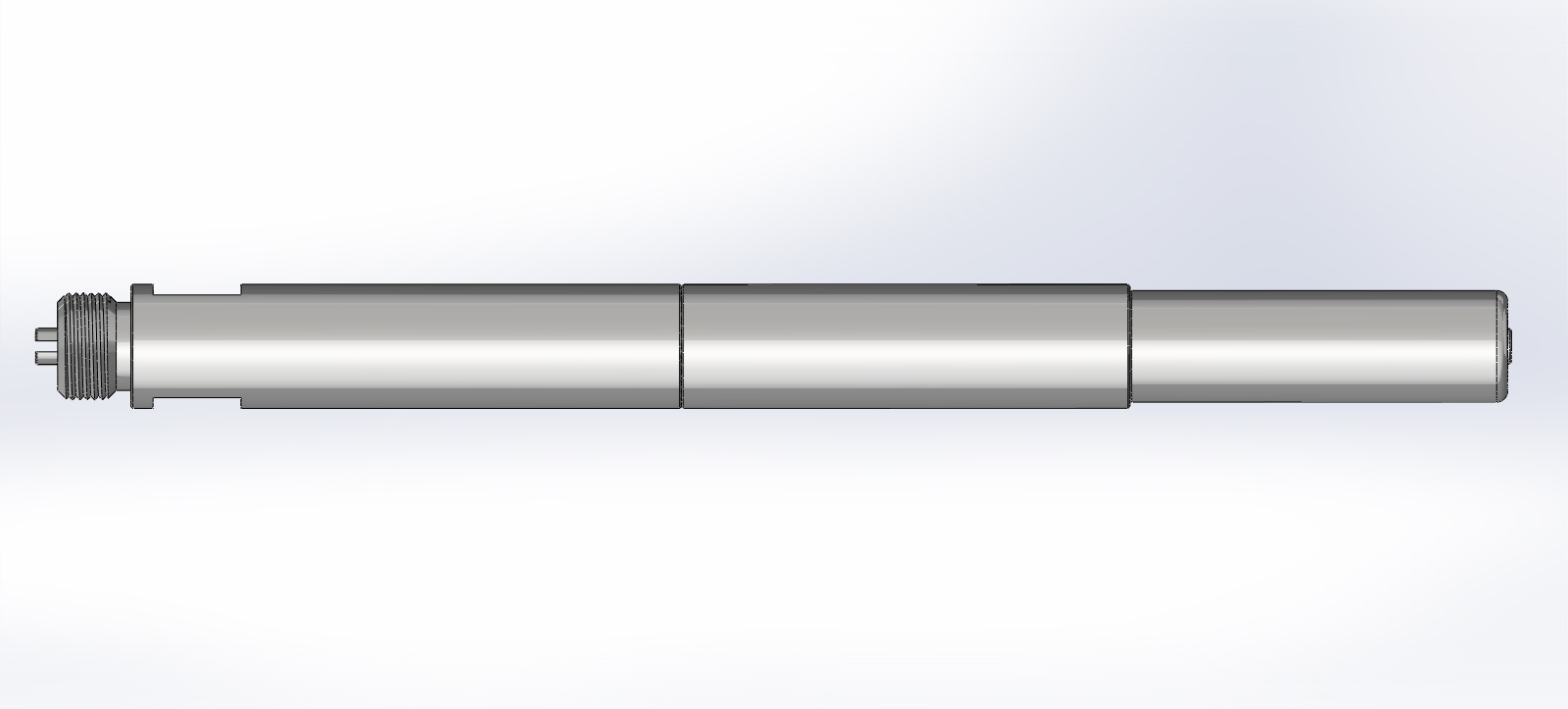

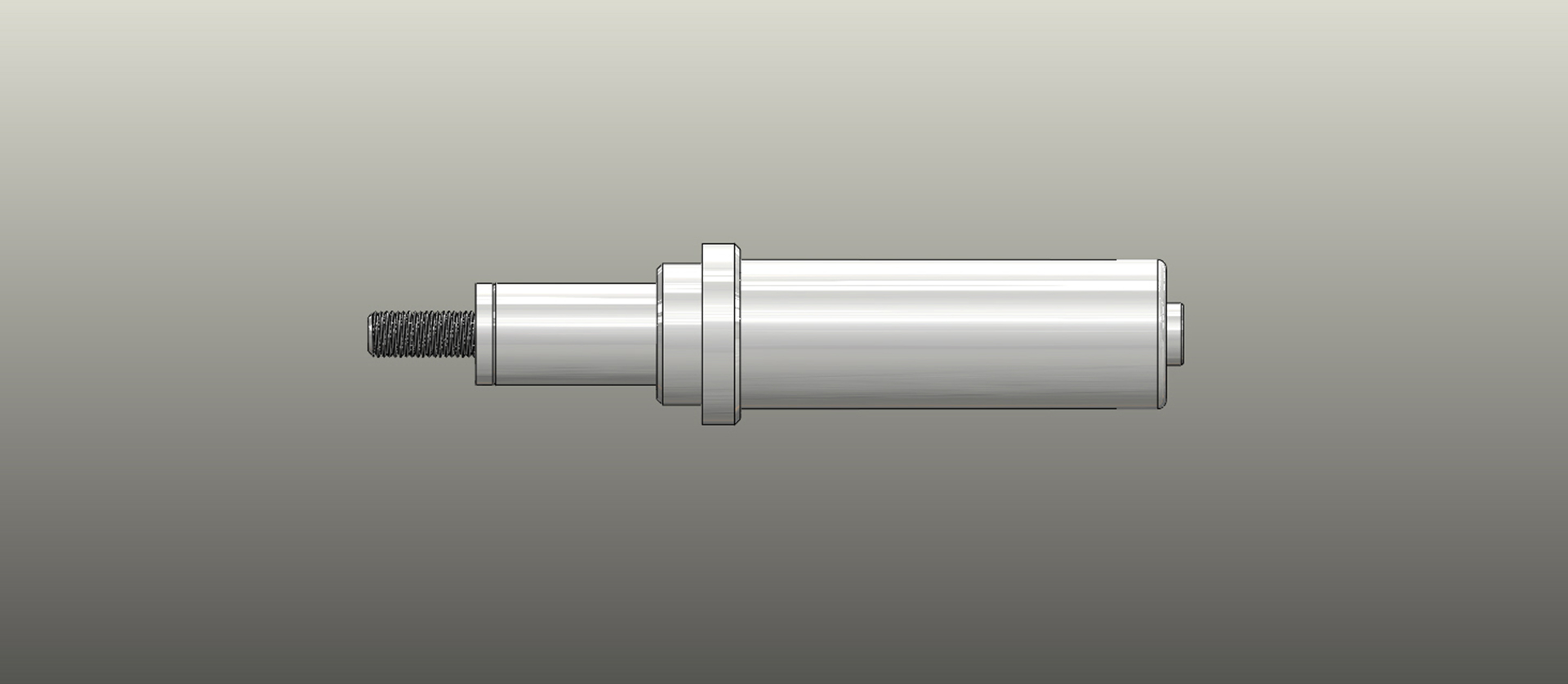

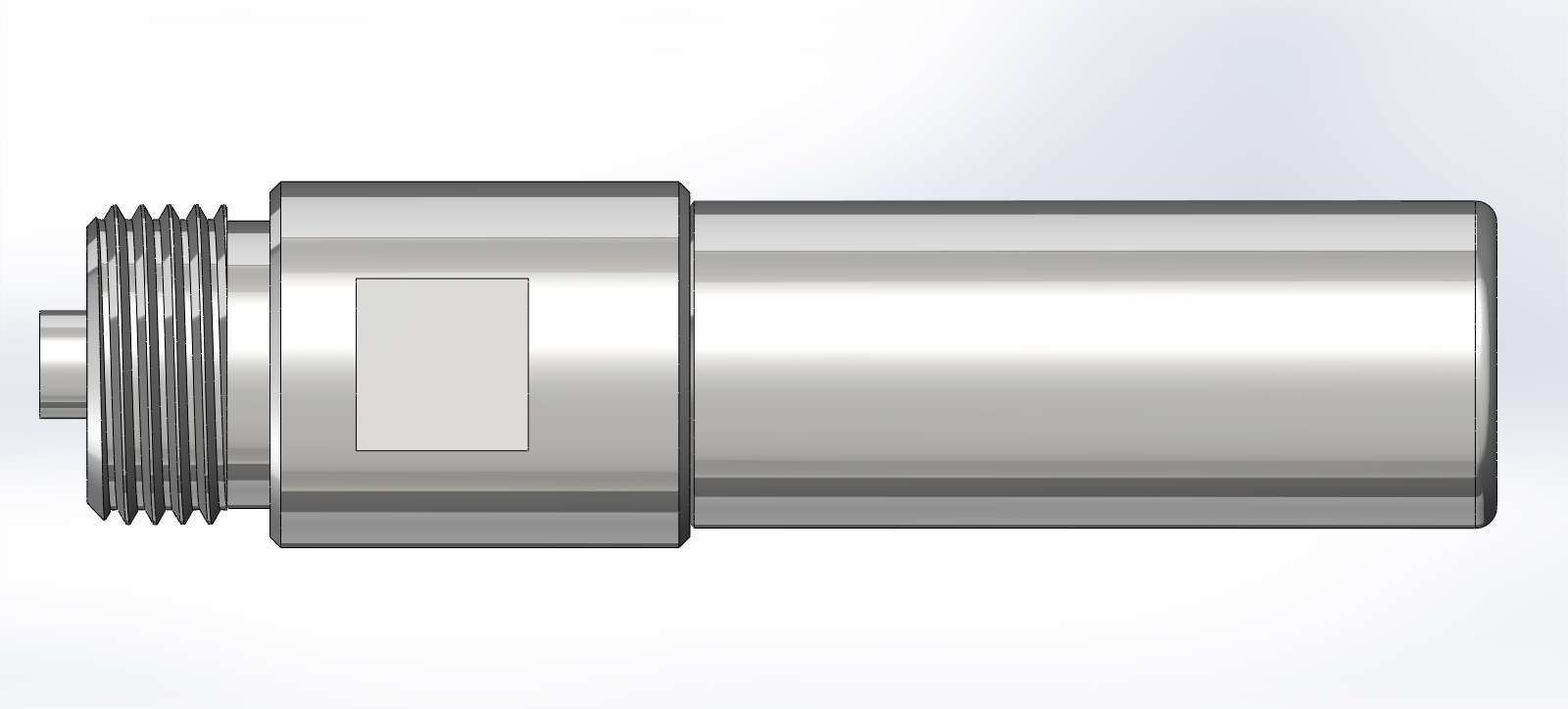

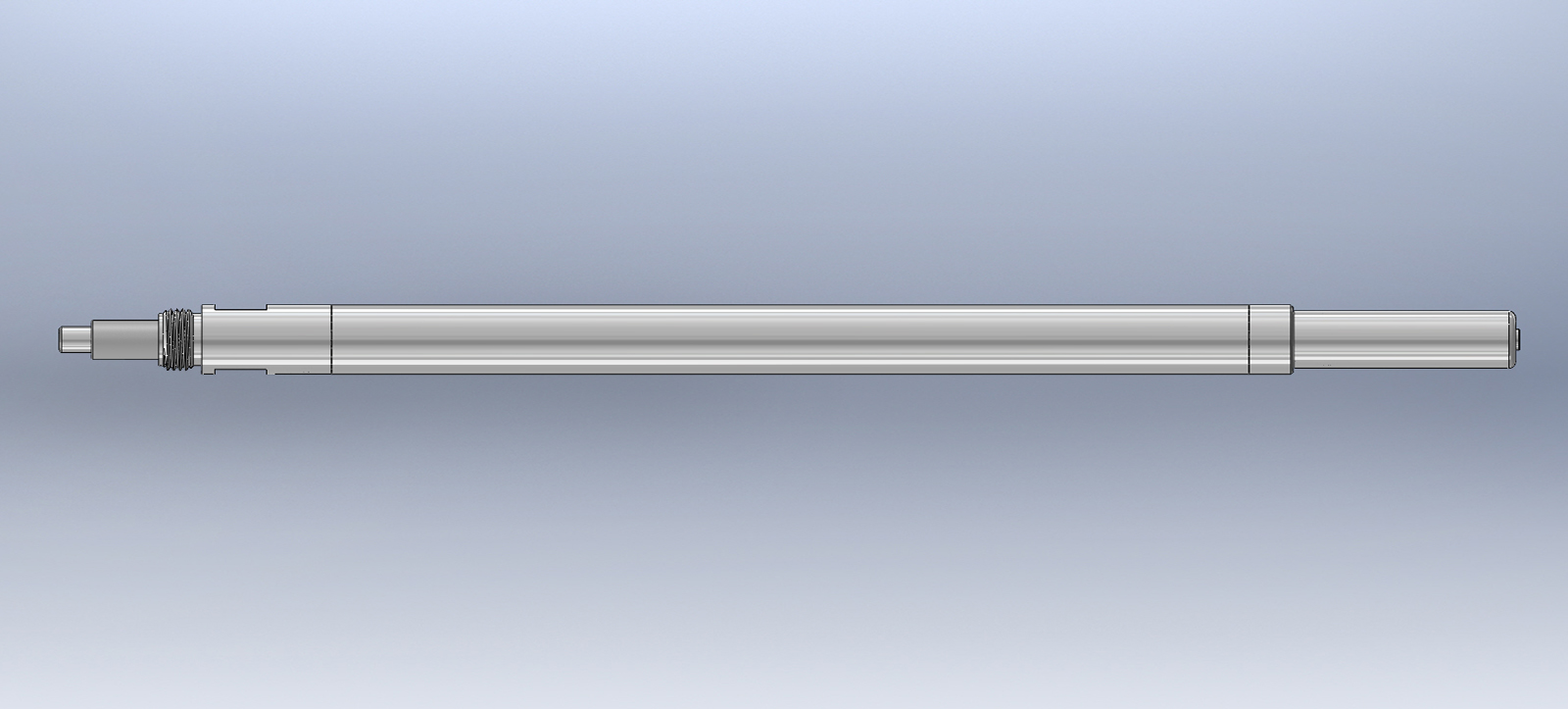

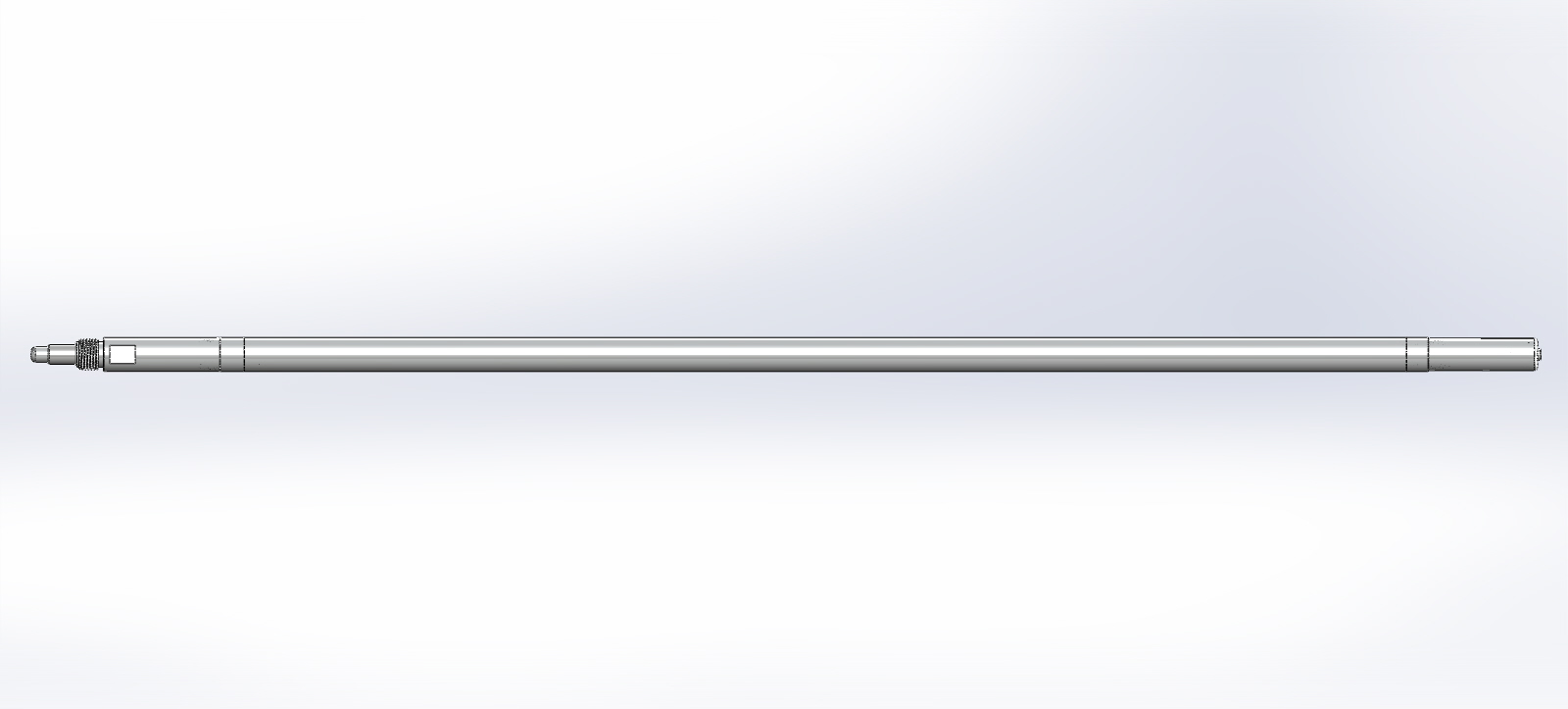

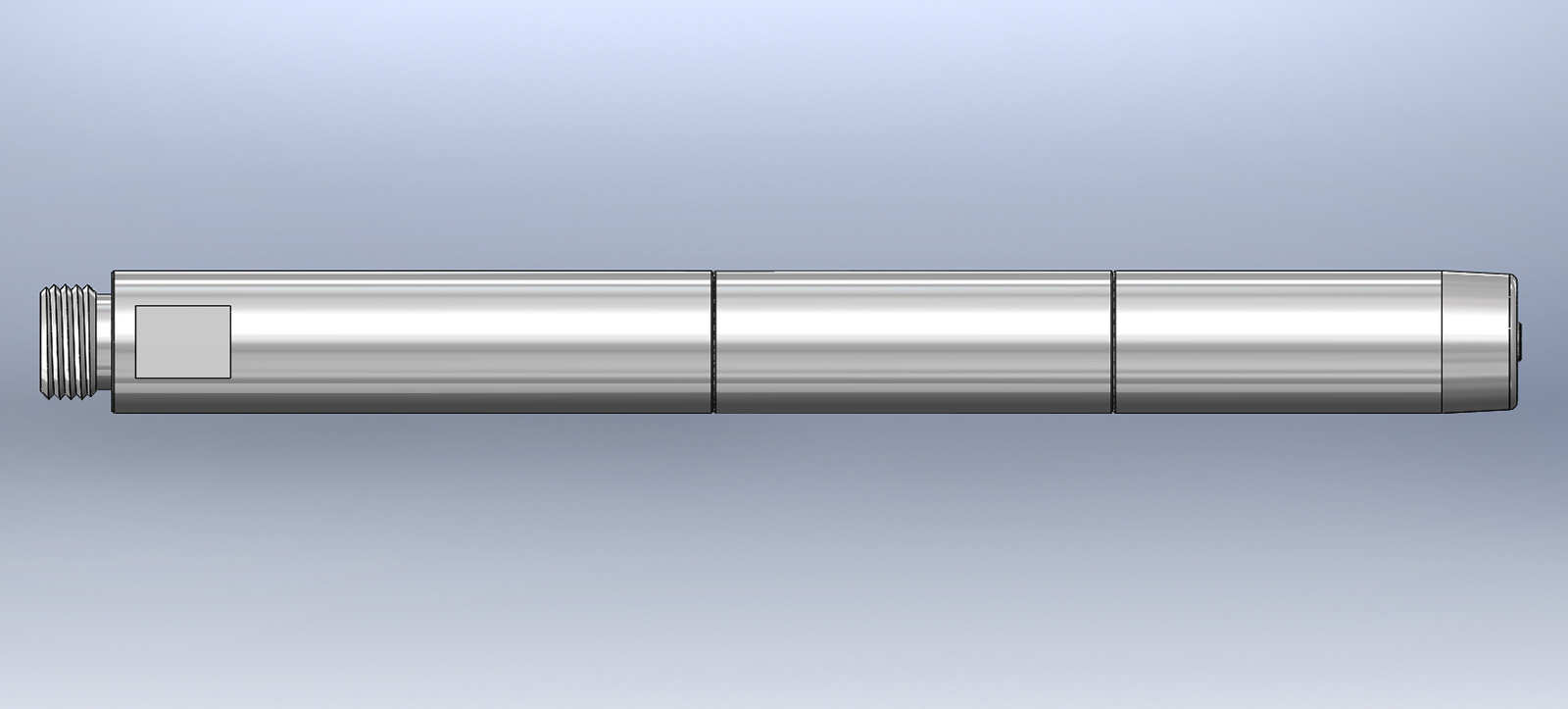

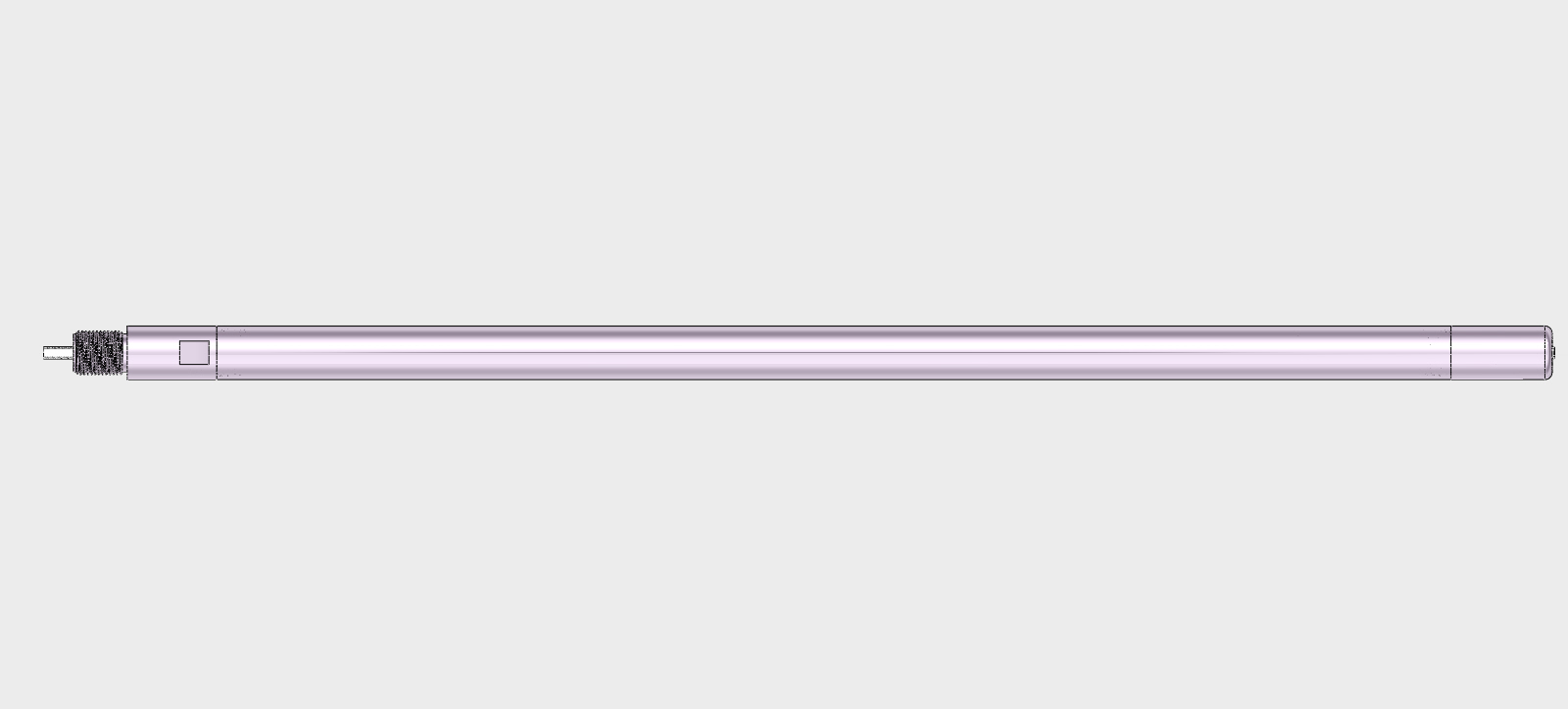

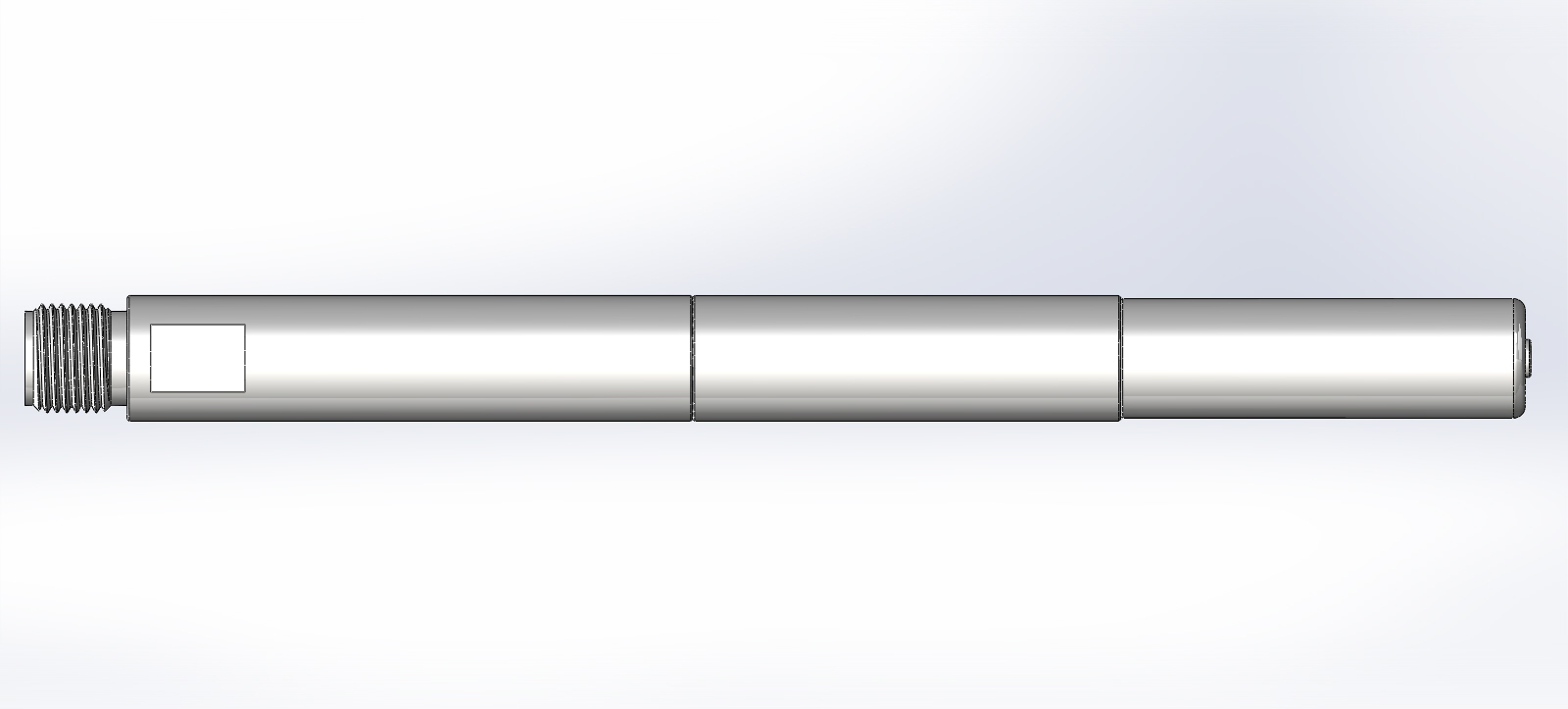

The Spark Tip converts the electrical discharge into High Energy Sparks to ignite a wide range of fuels such as Heavy Fuel Oil (HFO), Light Fuel Oil (LFO), Natural Gases, Fuel Gases, Diesel etc. The Spark Tip can easily be replaced as it is screwed onto the end of the Spark Rod.
Type | : Shunted surface semiconductor pin connection to Spark Rod |
Length | : 177.5+ 3mm, *(Refer note: 2) |
Thread | : 09/16-18 UNF -2A *(Refer note: 2) |
Front Diameter | : 15.2 mm *(Refer note: 3) |
Overall Diameter | : 16, 17, 18, 22 mm *(Refer note: 3) |
Material | : PIN : Inconel, CASING : Stainless Steel 304 |
Maximum Temp. | : 649°C |
