HEA Spark Rod (Rigid or Flexible)

The Spark Rod assembly connects the Spark Tip to the Flexible Cable so as to transmit the electrical discharges to the Spark Tip.

  • Standard Diameter : 15.9 mm
  • Flexible Spark rods for tilting type burners
  • Rigid Spark Rods for Pilot Burners, Refineries, Cement Plants, Chemical Plants etc.
SPECIFICATIONS
Type : Rigid or Flexible
Material : S.S 304 Tube, S.S. 304 Braided
Length : 84", 93", 100", 108", 126"
Diameter : 16,17,18,22mm
End Connection : Threaded, Quick Fit with 2 pin connector
Voltage Rating : Suitable for working up from 1000 V DC to 3600V DC (Maximum 4000V DC)
Temperature Rating : 450° C continuous
pro_image

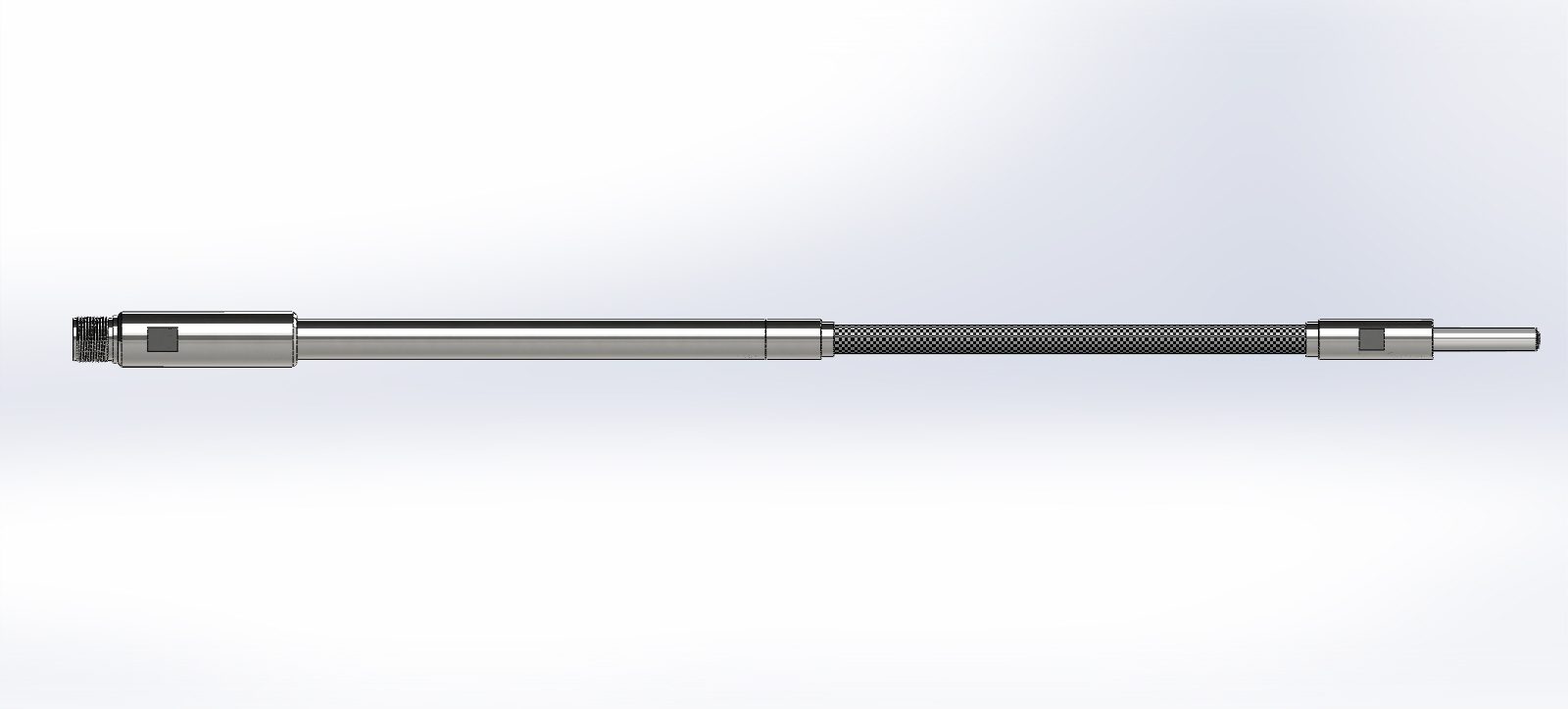

Part No.(Flexible): HT-FSR-1016

pro_image

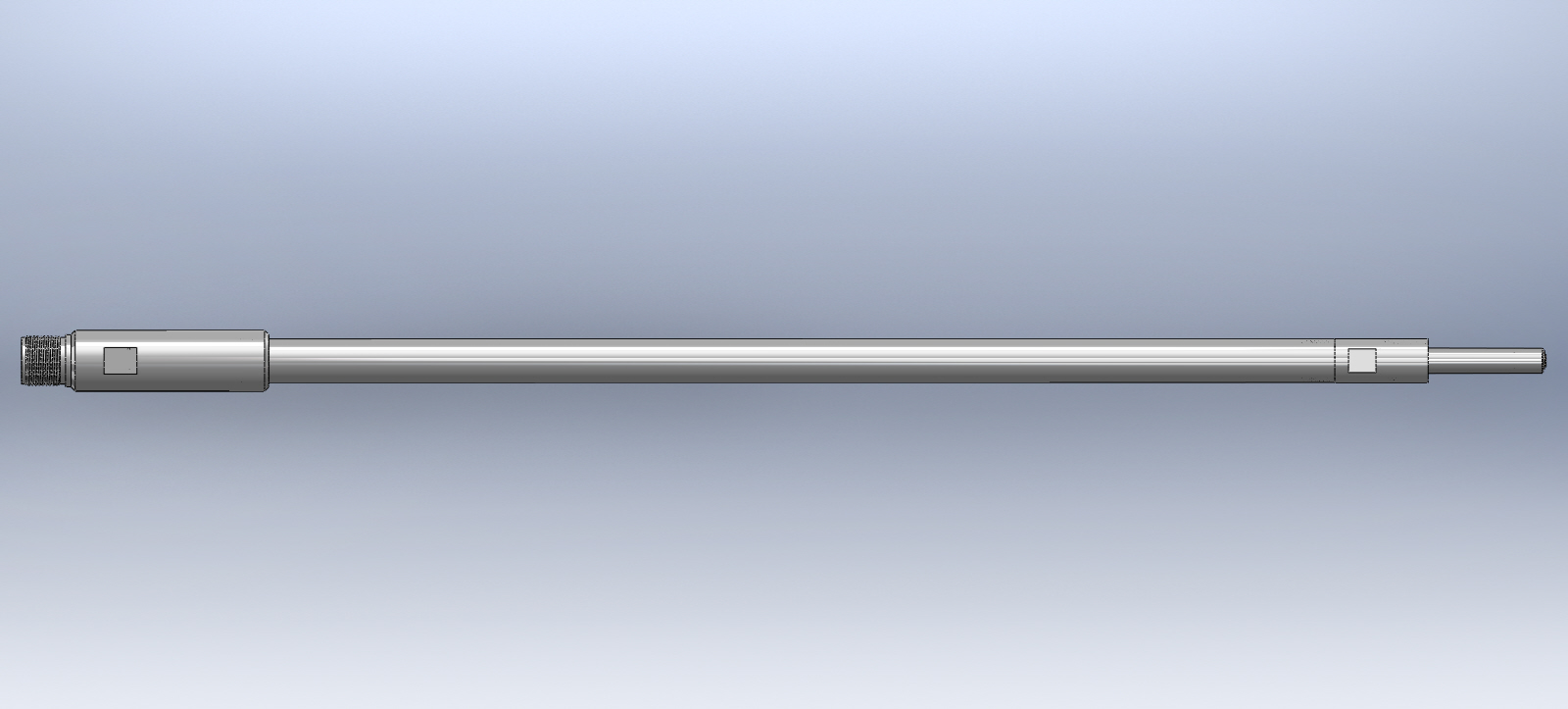

Part No.(Rigid): HT-RSR-1016

pro_image

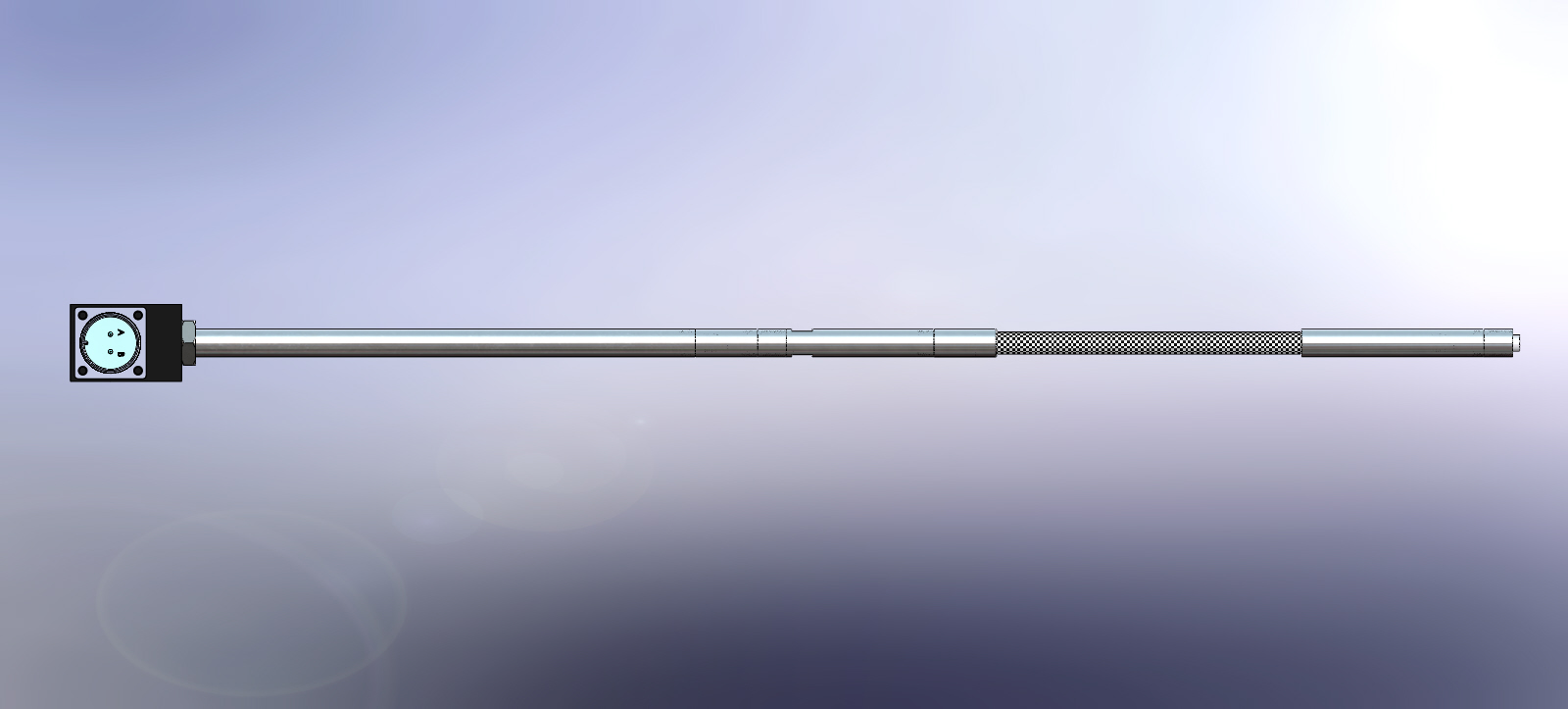

Part No.(Flexible): HT-FSR-1016 MC

pro_image

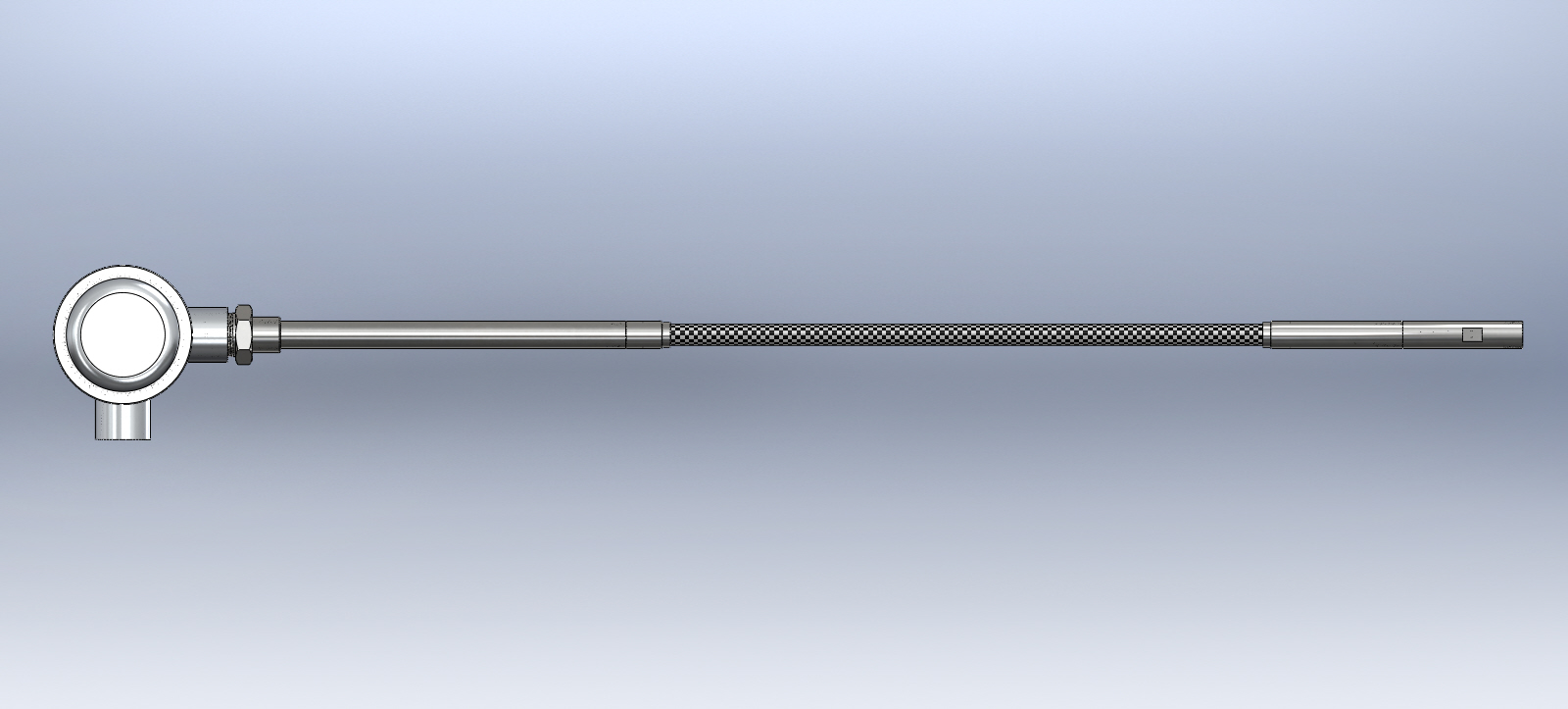

Part No.(Flexible): HT-FSR-1017-JB-T

pro_image

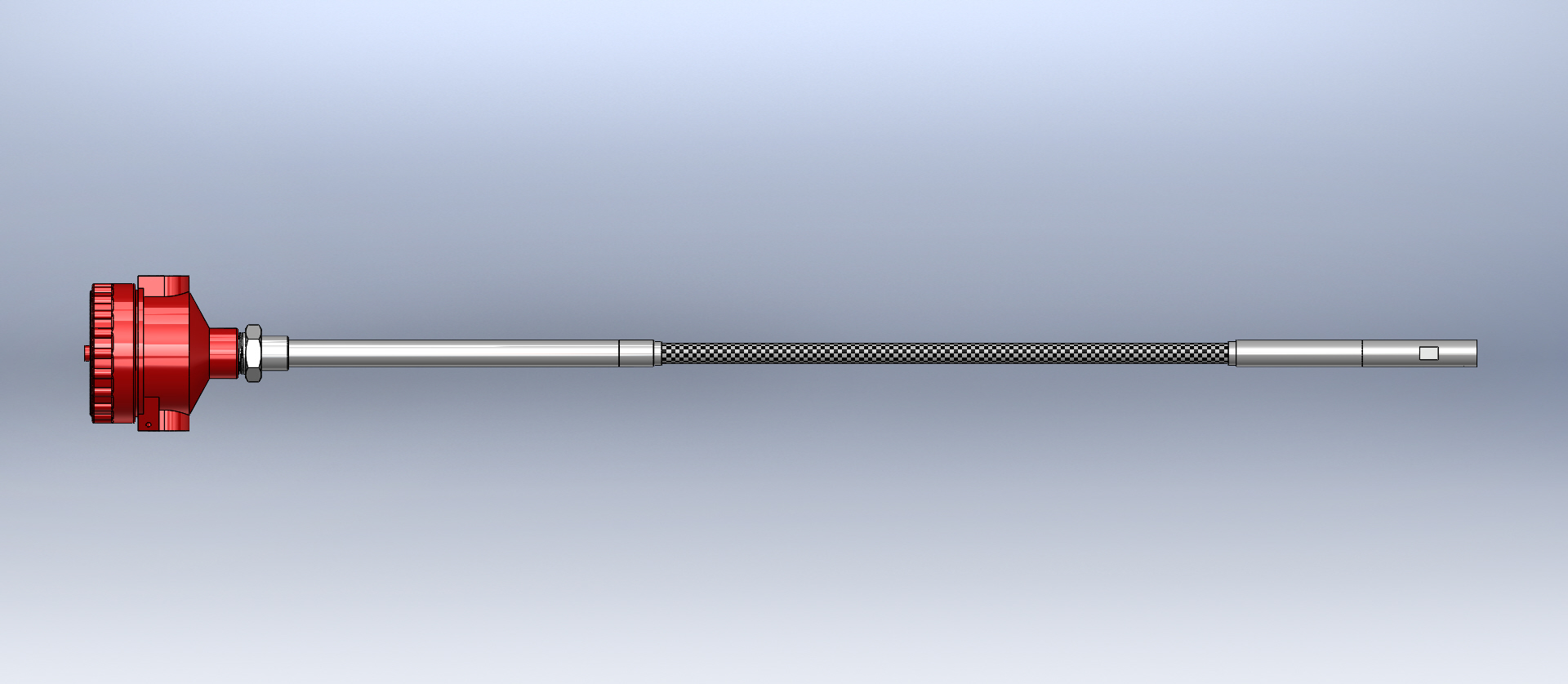

Part No.(Flexible): HT-FSR-1017-JB

pro_image

Part No.(Flexible): HT-FSR-1018

pro_image

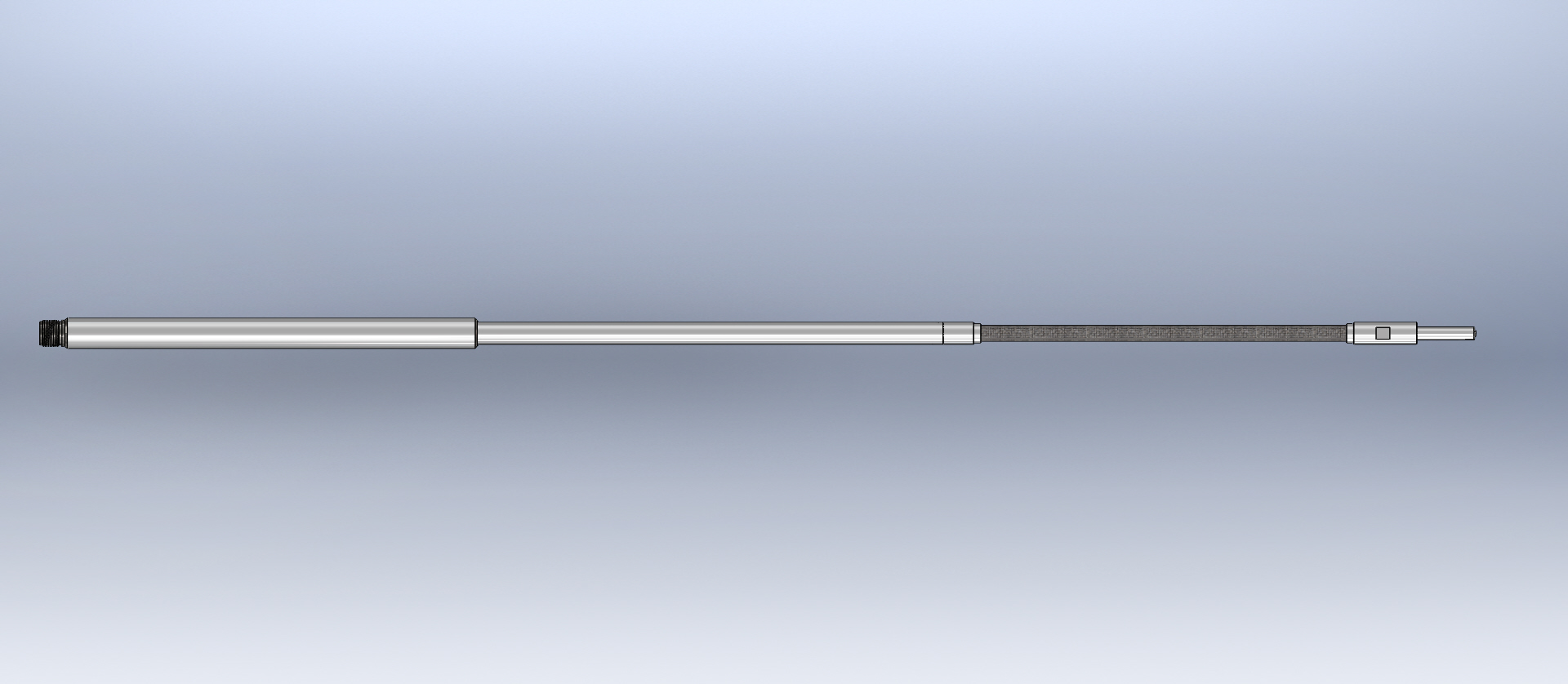

Part No.(Flexible): HT-FSR-1022-FC

pro_image

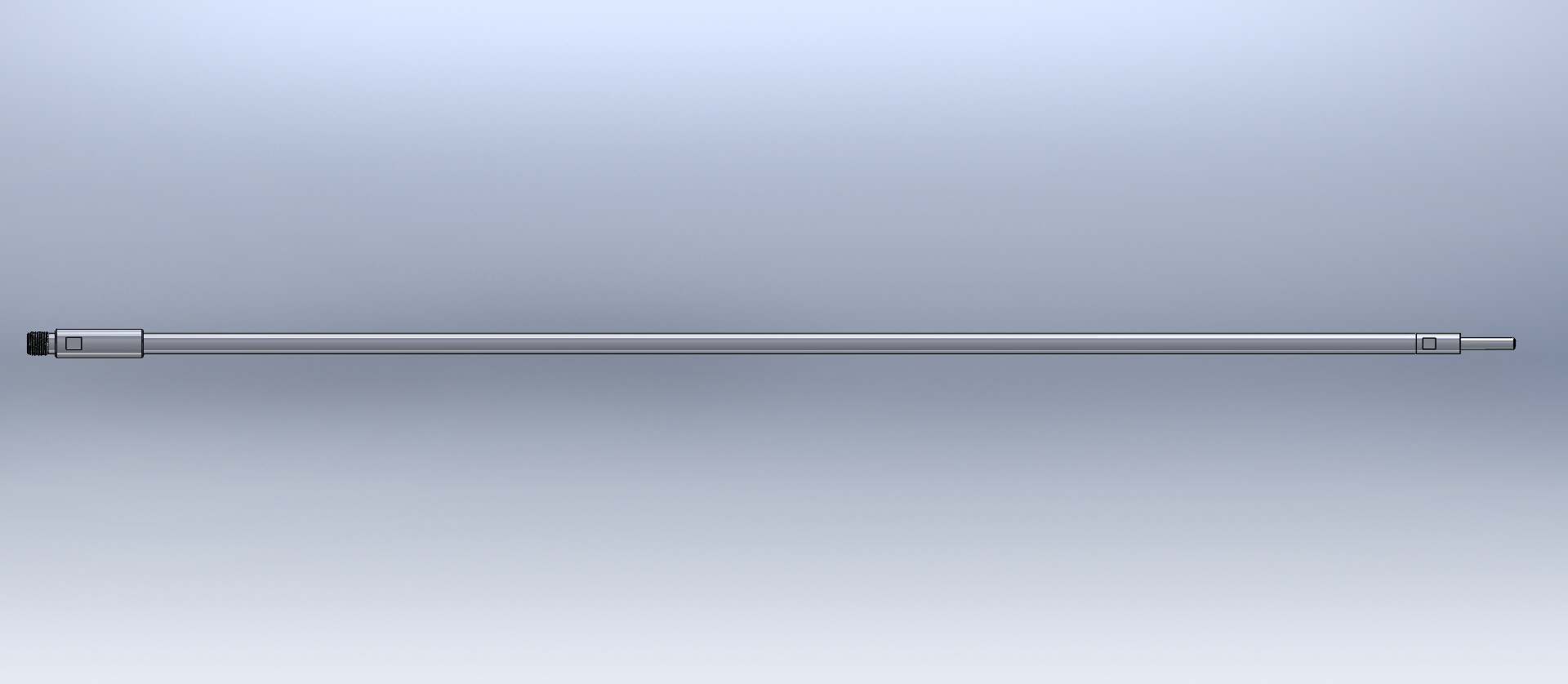

Part No.(Rigid): HT-RSR-1016-XC

pro_image

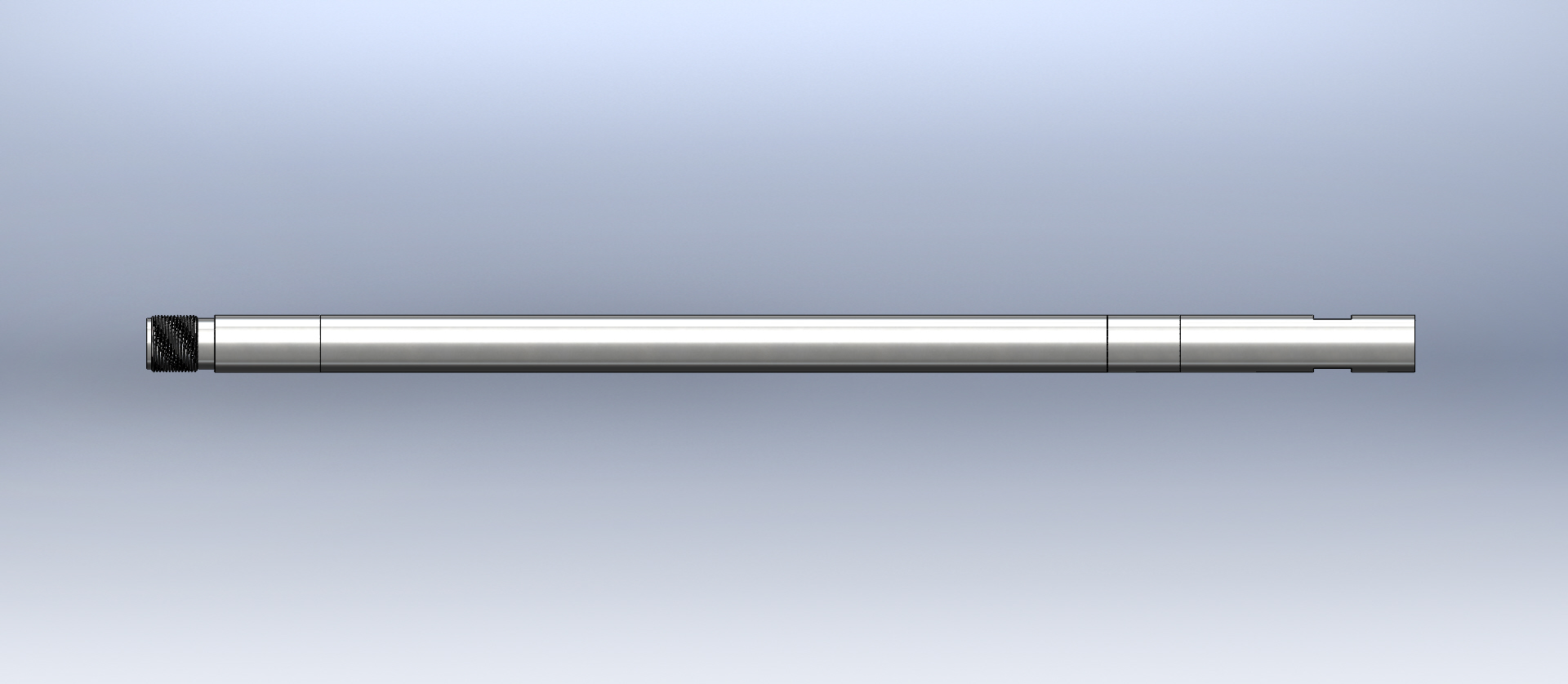

Part No.(Rigid): HT-RSR-1018-SWXC
