HEA Exciter Box (Power Pack Unit)
HEA Exciter Power Pack is a unique high energy spark gap controller or Thyristor controller with capacitors having a pulse rate of approximately 4 to 8 sparks per second. Its high reacting transformer and full wave charging circuit provides an extended duty service. In fact, TruFire is one of the most powerful and reliable Igniter System available with 4 to 30 Joules. It's a highly adaptable maintenance free Exciter offering lowering Ignition costs and is also safe for end user with no risk of electric shock.
- AC and DC inputs are available
- Certified Enclosure for Hazardous environments including ATEX, CCOE, DG MS, Ex-Proof, Ex-d, Class I, Class II, Division-1 & 2, Group A to G
- Suitable for Harsh conditions such as high moisture etc.
- Compact Designs
- Spark Gap Technology without Radioactive material
- Thyristor Technology without gas discharge tubes or radioactive material
- Battery Operated Power Pack is also available for remote operations
STANDARD SPECIFICATIONS
| Standard Energy | : 12 Joules |
| Spark Rate per second | : > 5 Sparks |
| Input Voltage | : 110 or 230V AC, 50/60 Hz |
| Duty Cycle | : 15 Minutes ON, 15 Minutes OFF (1:1) |
| Fuel Applied | : HFO, LDO, Crude Oil, Fuel Gases |
| Maximum Current | : 5 Amp. |

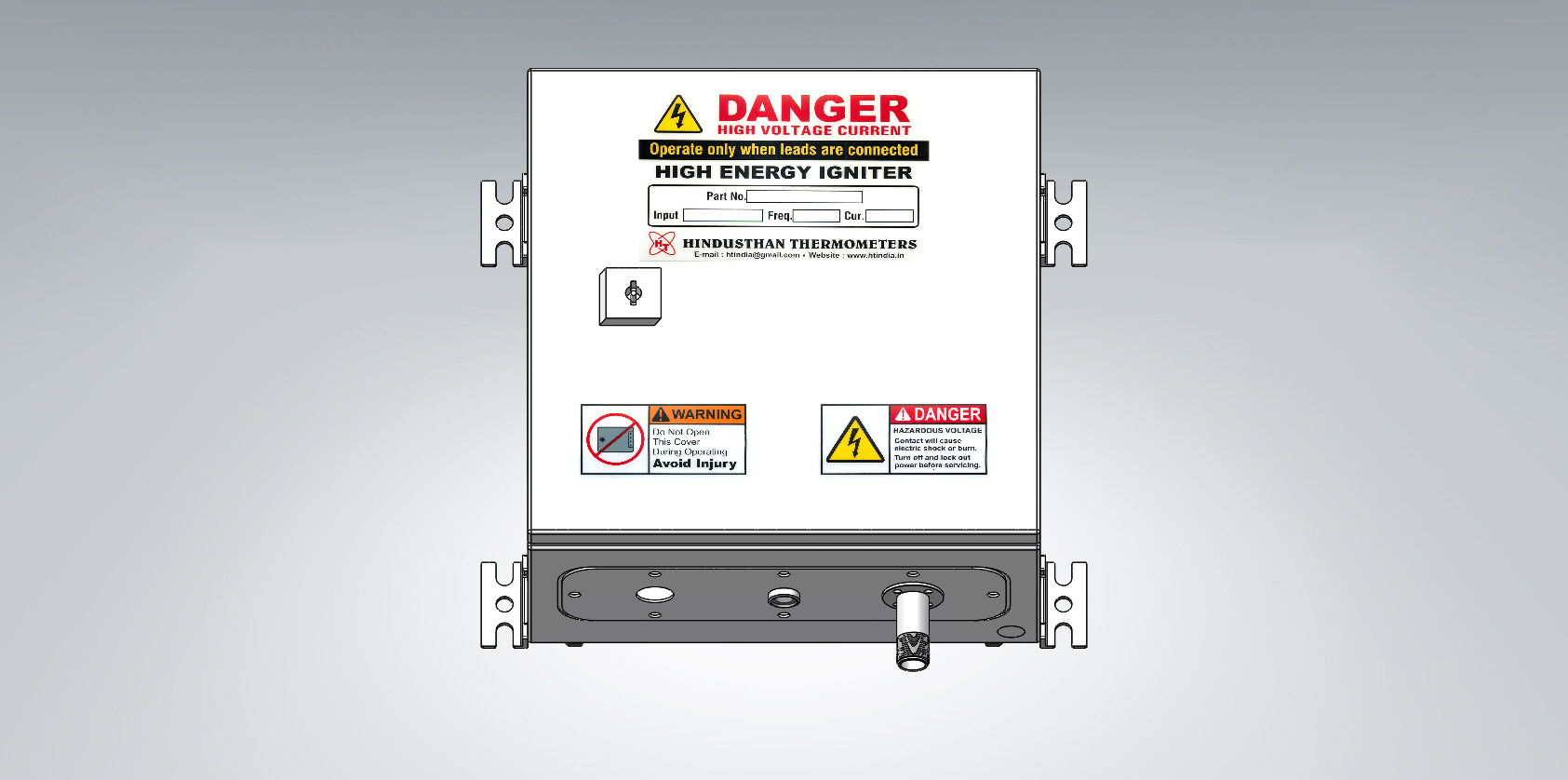

Part No: HT-HEA-SC-12J
| Exciter Type | Spark Gap |
| Enclosure | Weather Proof, NEMA 4 |
| Protection Class | IP 65 |
| Dimensions(HxWxD) | 300 X 300 X 155 mm / 400 X 300 X 210 mm |
| Other Energy available | 6 to 24 Joules |
| Operating Temperature | -25°C to 75°C |
| Internal Circuit No. | HT-DX-22-1 |

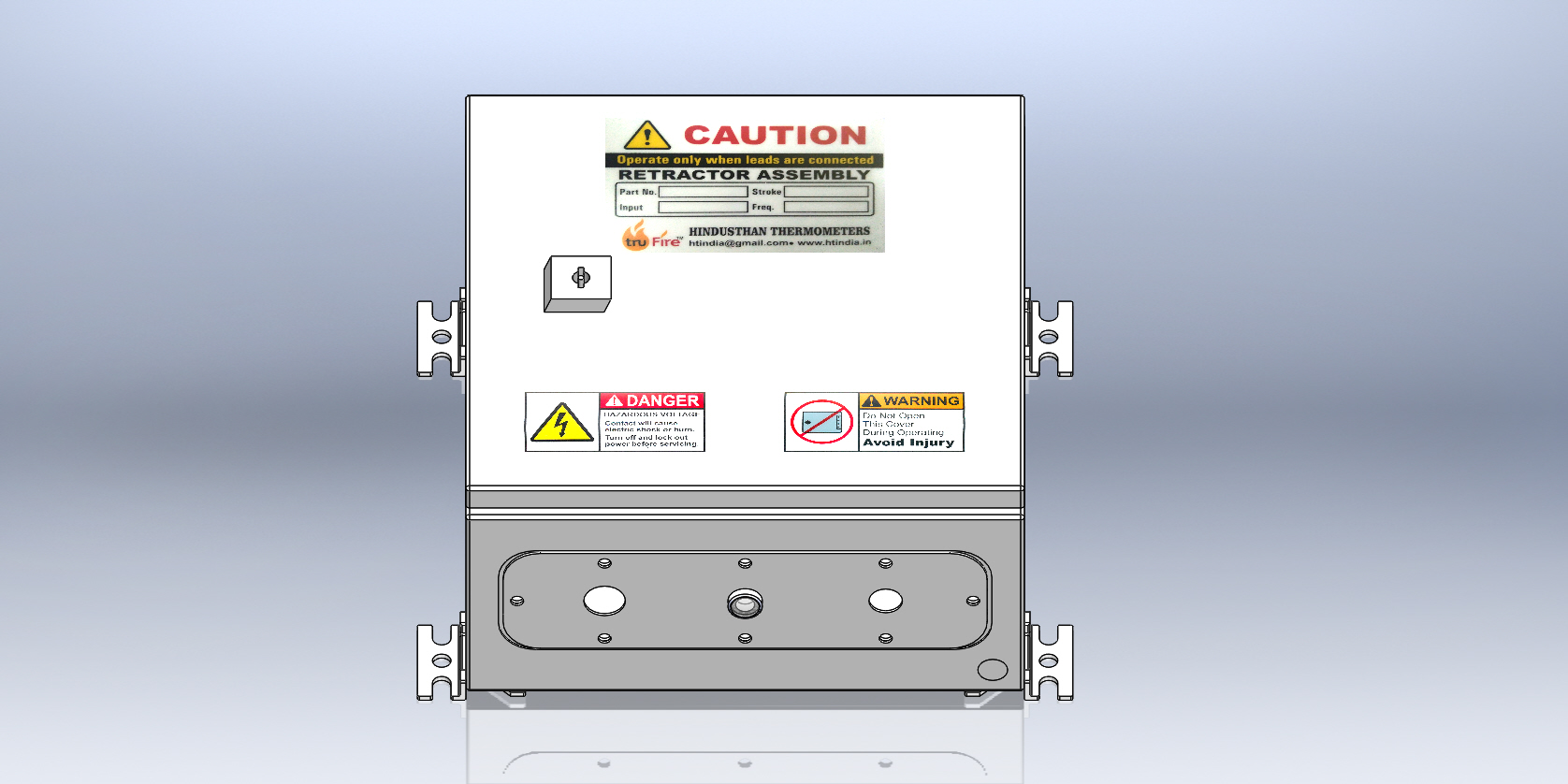

Part No: HT-HEA-SC-12J-T
| Exciter Type | Spark Gap |
| Enclosure | Weather Proof, NEMA 4 |
| Protection Class | IP 65 |
| Dimensions(HxWxD) | 300 X 300 X 155 mm / 400 X 300 X 210 mm |
| Other Energy available | 6 to 30 Joules |
| Operating Temperature | -25°C to 75°C |
| Internal Circuit No. | HT-DX-22-1-T |

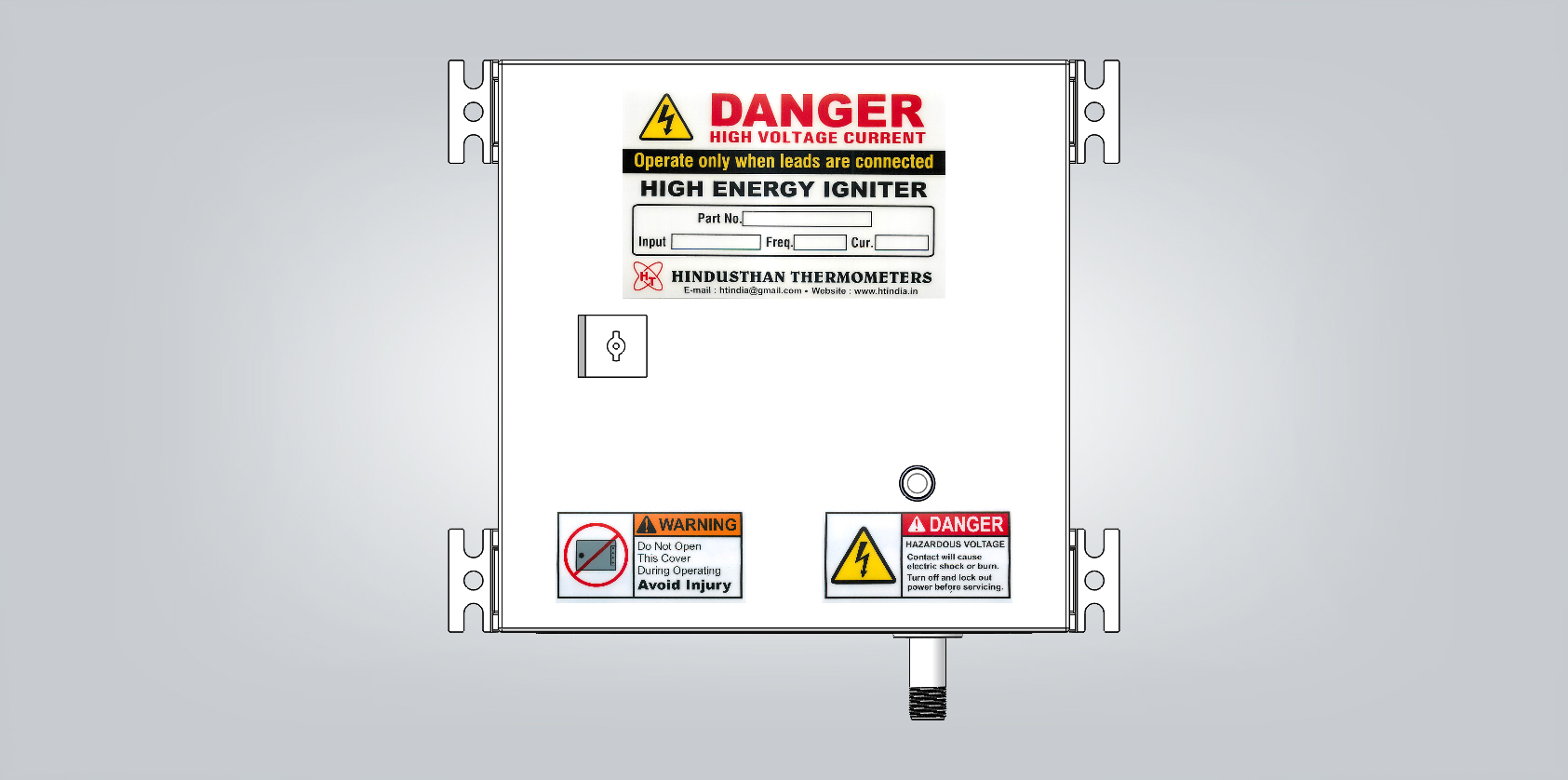

Part No: HT-HEA-12J-N
| Exciter Type | Spark Gap |
| Enclosure | Weather Proof, NEMA 4 |
| Protection Class | IP 65 |
| Dimensions(HxWxD) | 300 X 300 X 210 mm |
| Operating Temperature | -25°C to 75°C |
| Internal Circuit No. | HT-12-0-00 |

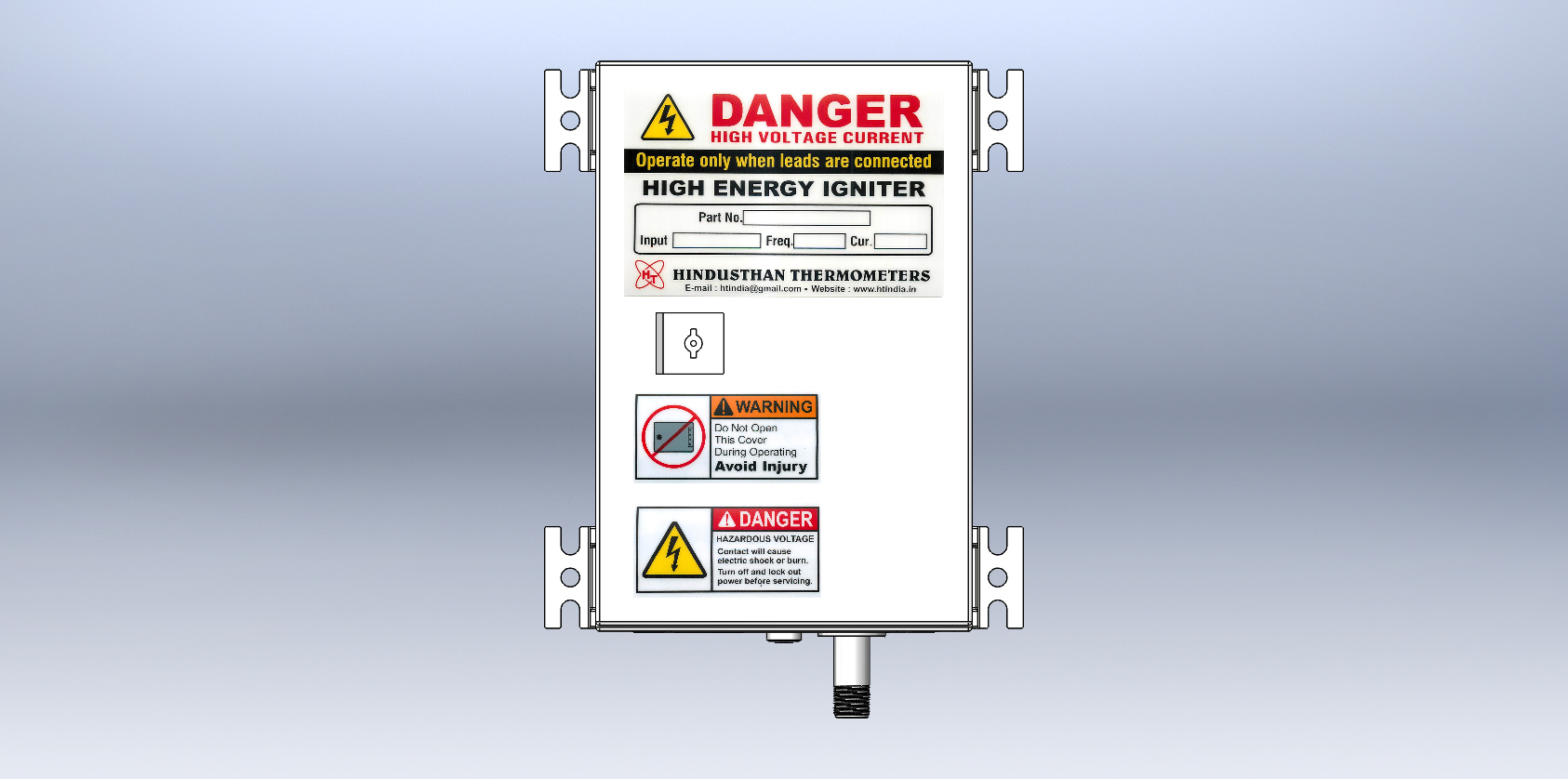

Part No: HT-HEA-SC-12J-XX2
| Exciter Type | Spark Gap |
| Enclosure | Weather Proof, NEMA 4 |
| Protection Class | IP 65 |
| Dimensions(HxWxD) | 300 X 200 X 155 mm/300 X 300 X 155 mm |
| Other Energy available | 4 to 18 Joules |
| Operating Temperature | -25°C to 75°C |
| Internal Circuit No. | HT-HEA-XX2 |

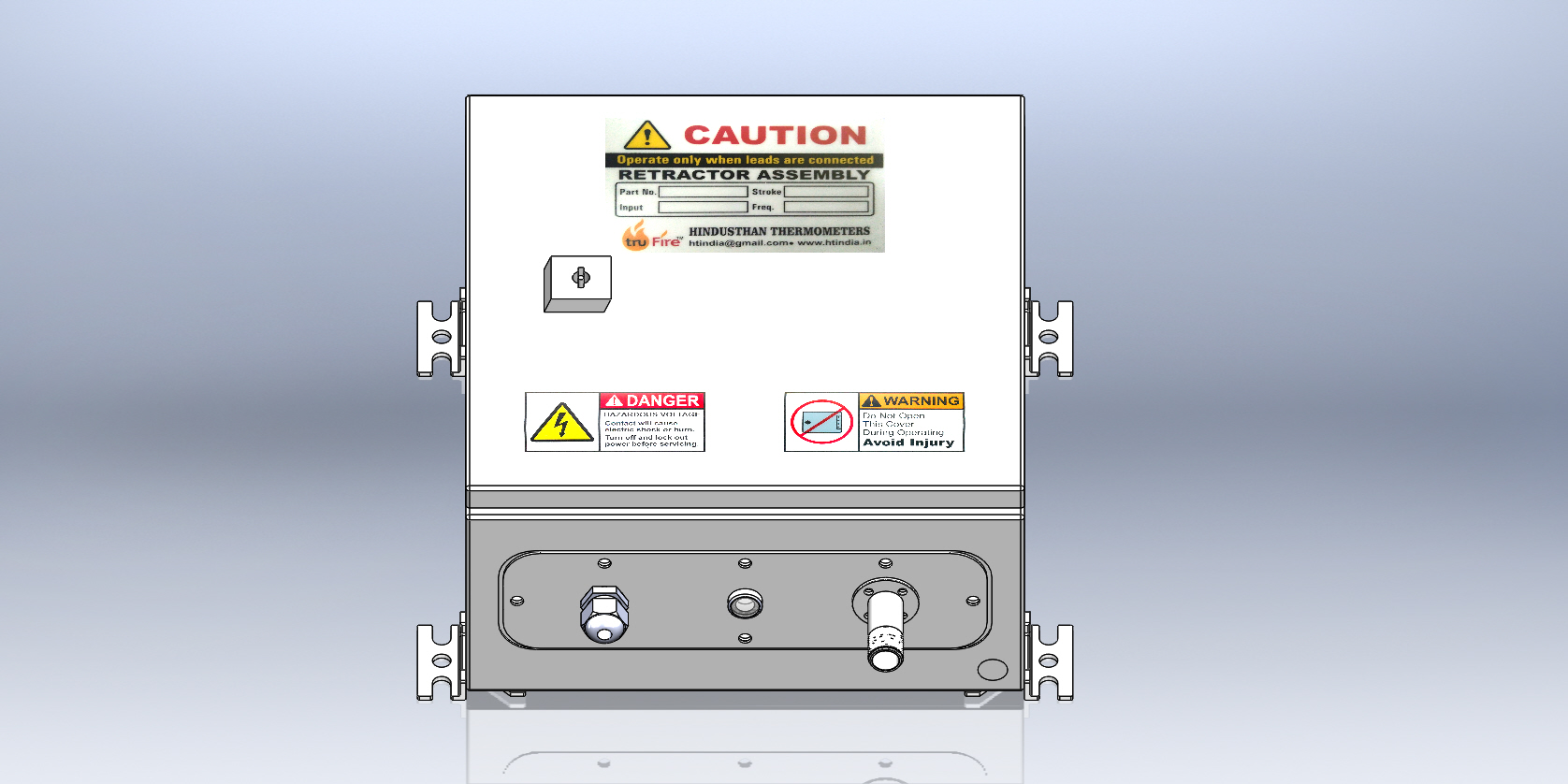

Part No: HT-HEA-SC-12J-TSS
| Exciter Type | Thyrister/Solid State |
| Enclosure | Weather Proof, NEMA 4 |
| Protection Class | IP 65 |
| Dimensions(HxWxD) | 300 X 300 X 155 mm |
| Other Energy available | 12 to 24 Joules |
| Operating Temperature | -25°C to 75°C |
| Internal Circuit No. | HT-TSS-277 |

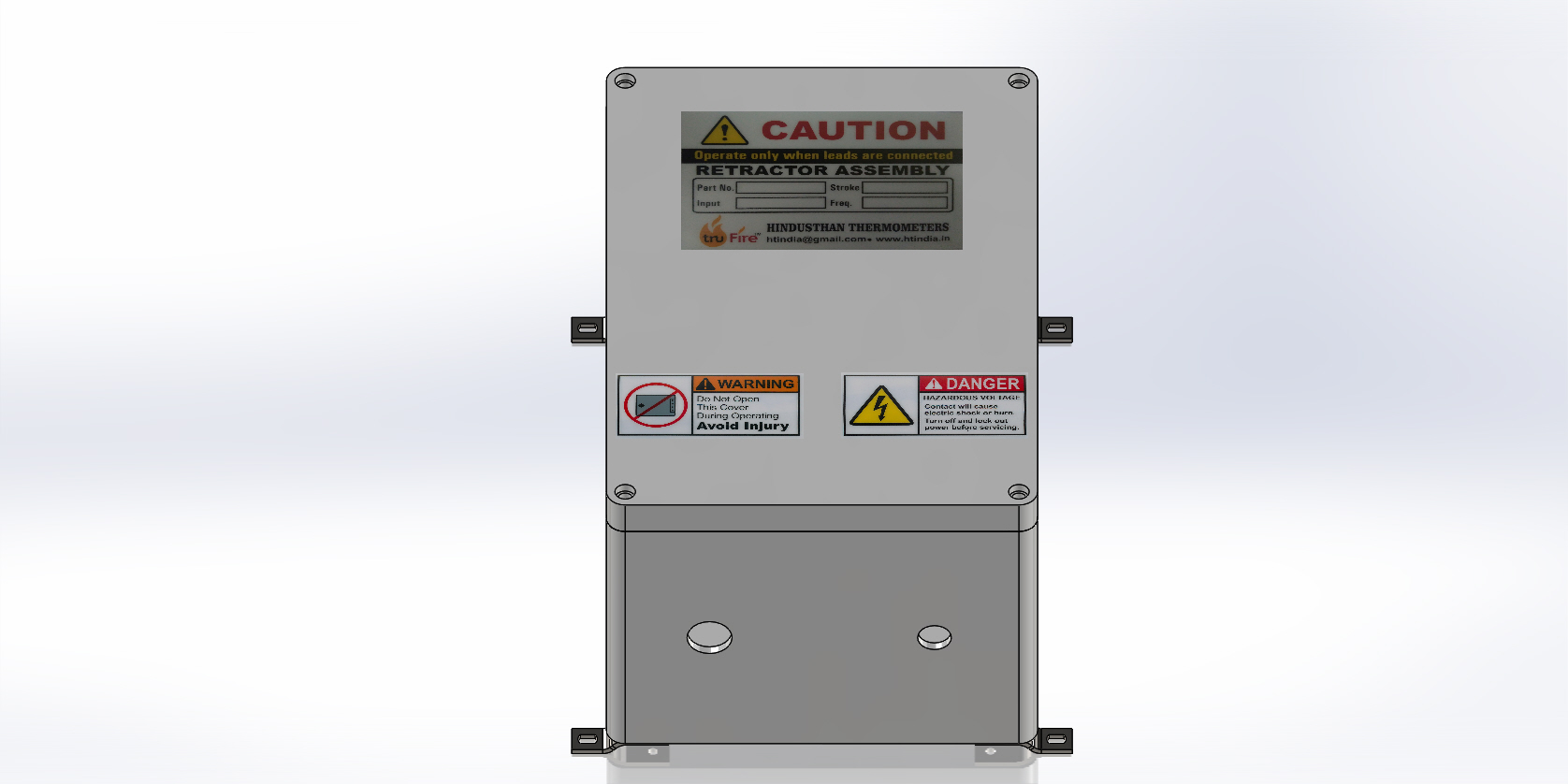

Part No: HT-HEA-ALD-EXP-12J-T
| Exciter Type | Spark Gap |
| Enclosure | ATEX Approved, Ex-Proof Available* |
| Protection Class | IP 65 or IP 66 |
| Dimensions(HxWxD) | 300 X 230 X 180 mm |
| Other Energy available | 6 to 30 Joules |
| Operating Temperature | -25°C to 90°C |
| Internal Circuit No. | HT-DX-12-1-T |

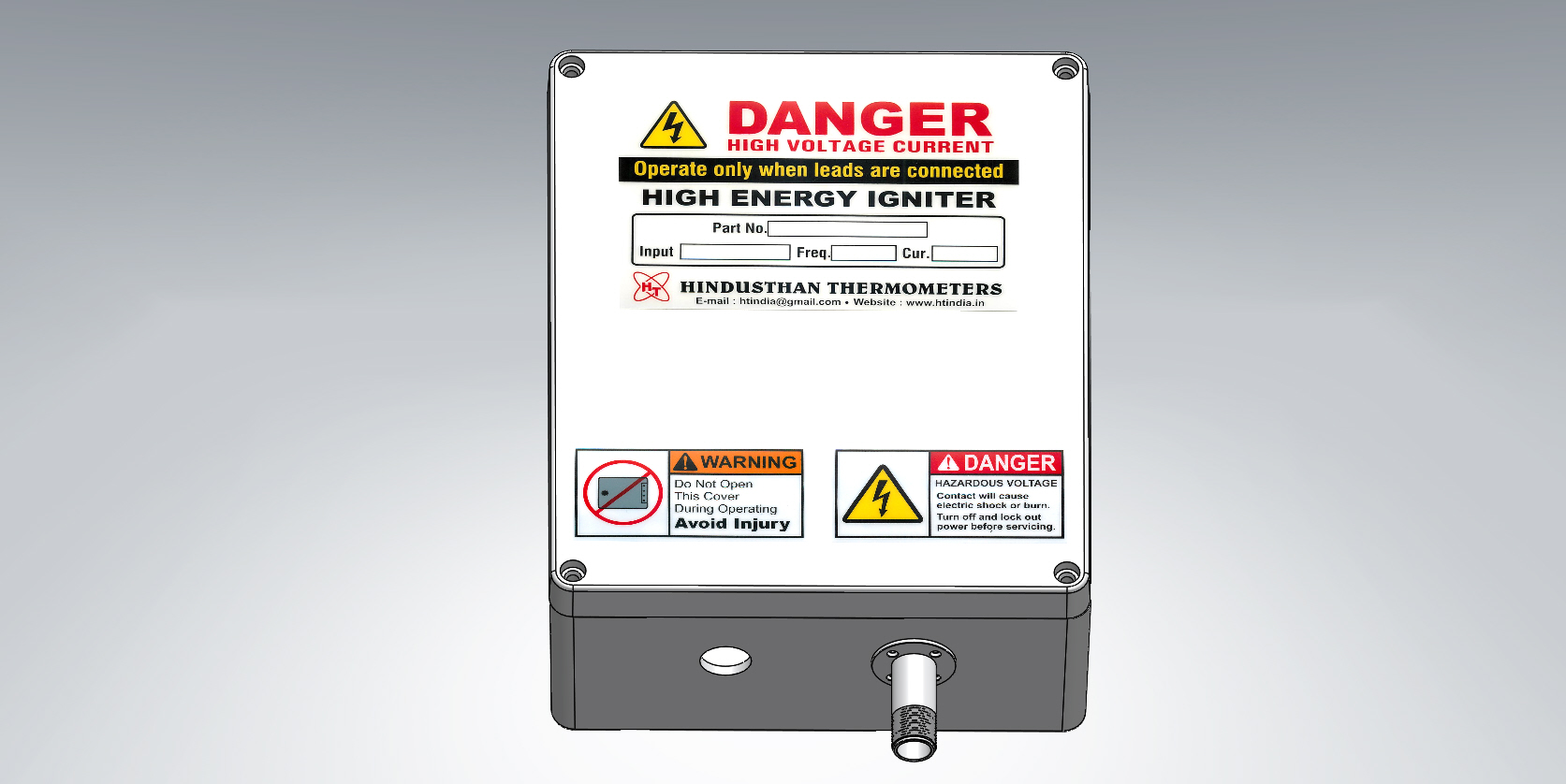

Part No: HT-HEA-ALD-12J-XX2
| Exciter Type | Spark Gap |
| Enclosure | ATEX Approved |
| Protection Class | IP 65 or IP 66 |
| Dimensions(HxWxD) | 280 X 230 X 110 mm |
| Other Energy available | 4 to 18 Joules |
| Operating Temperature | -25°C to 90°C |
| Internal Circuit No. | HT-HEA-XX2 |

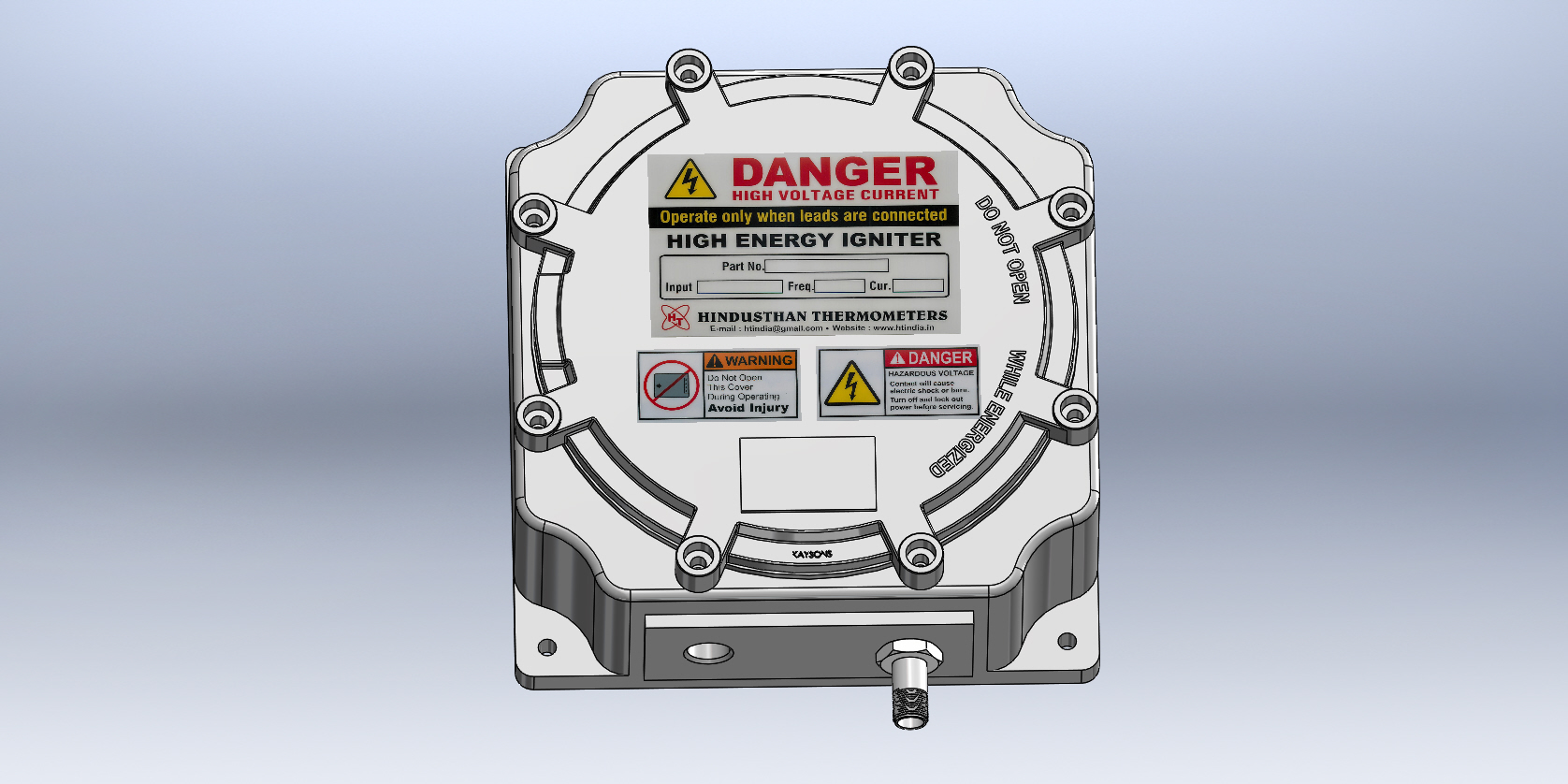

Part No: HT-HEA-EXD-12J-H07-D
| Exciter Type | Spark Gap |
| Enclosure | CCOE, DGMS, Flameproof |
| Protection Class | IP 65 or IP 66 |
| Dimensions(HxWxD) | 320 X 320 X 150 mm |
| Other Energy available | 4 to 18 Joules |
| Operating Temperature | -25°C to 90°C |
| Internal Circuit No. | HT-HEA-XX2 |

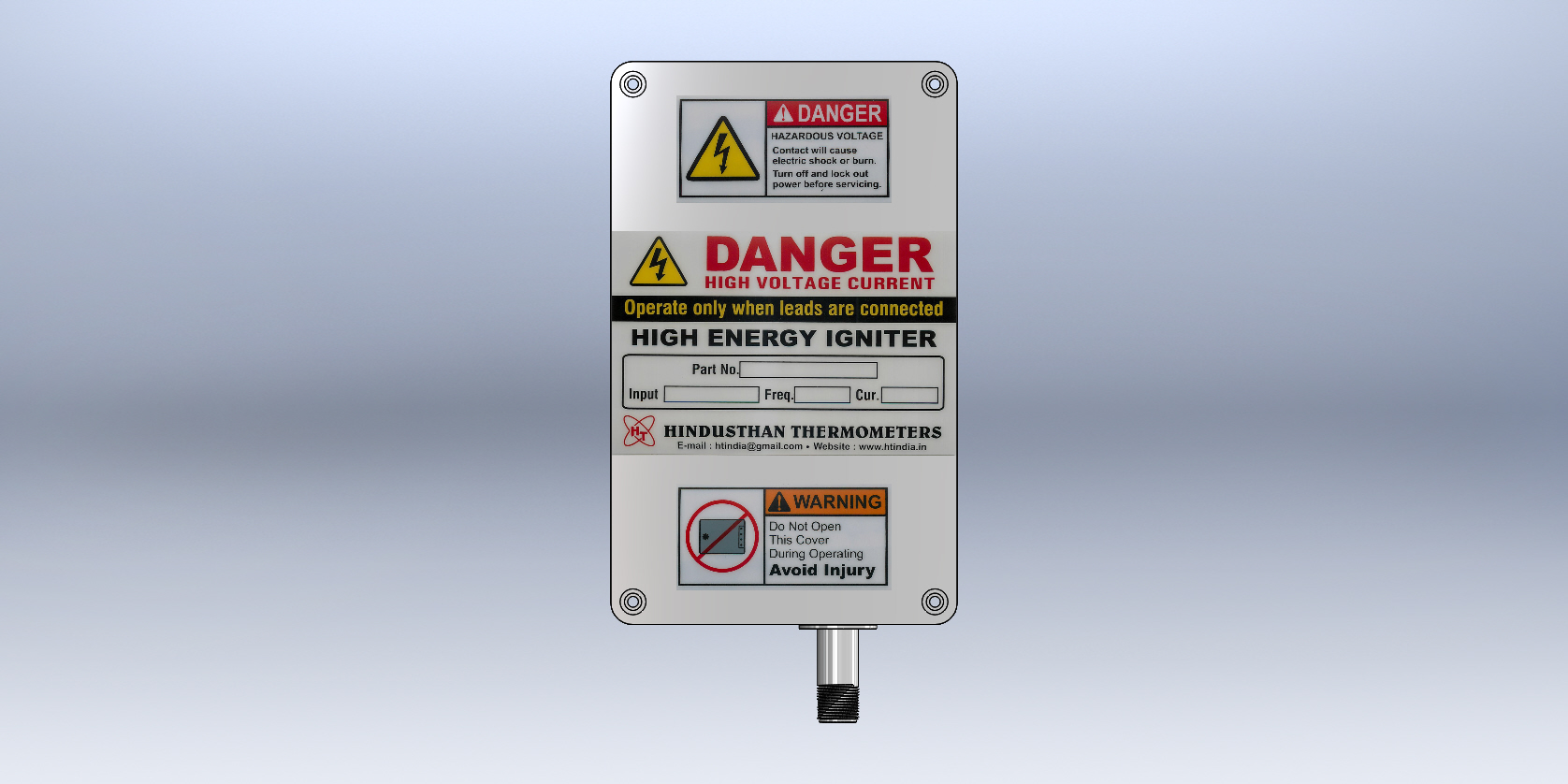

Part No: HT-HEA-ALC-12J
| Exciter Type | Spark Gap |
| Enclosure | Weather proof, NEMA 4 |
| Protection Class | IP 65 |
| Dimensions(HxWxD) | 260 X 160 X 115 mm |
| Other Energy available | 4 to 18 Joules |
| Operating Temperature | -25°C to 90°C |
| Internal Circuit No. | HT-HEA-XX2 |

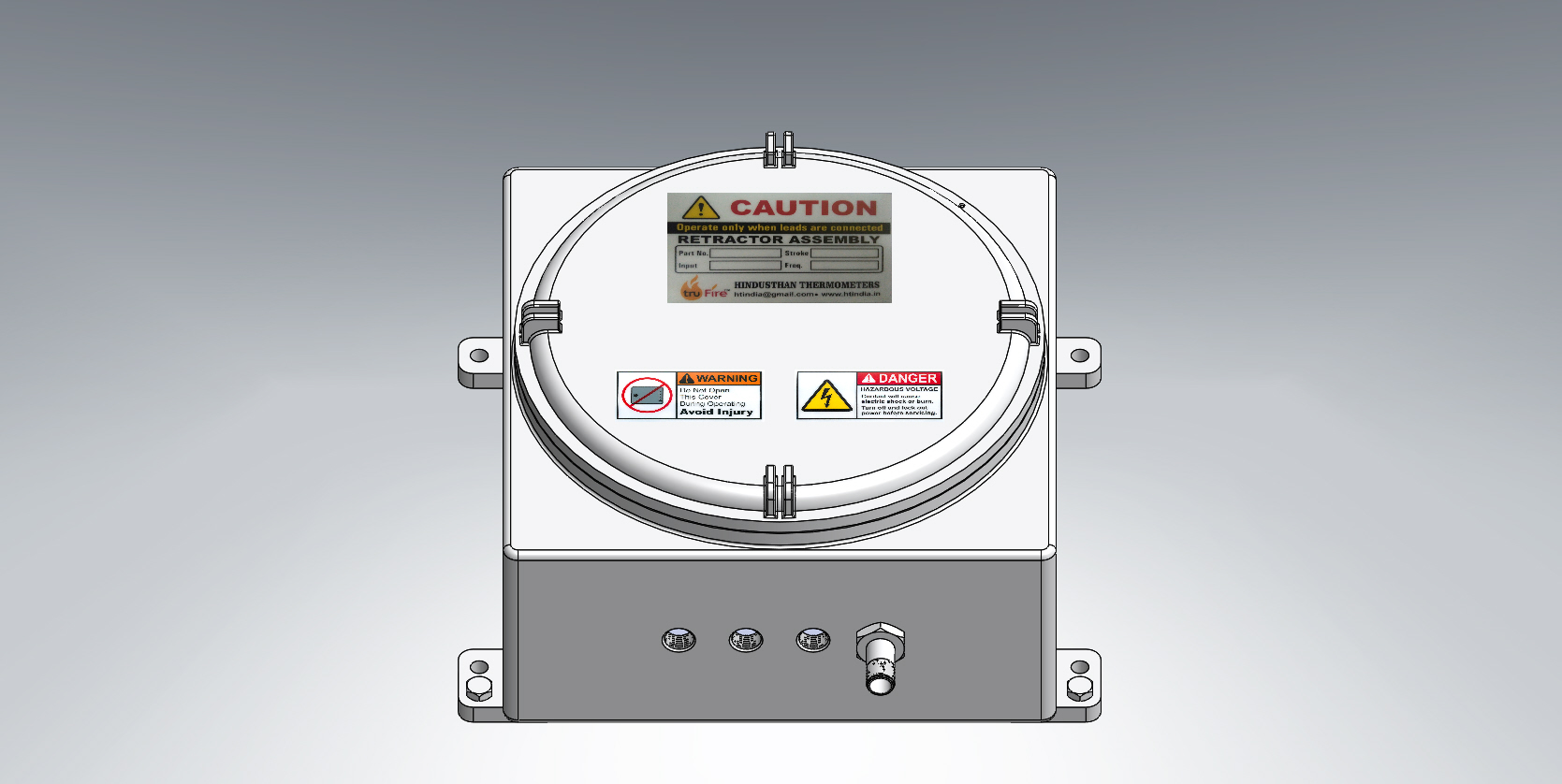

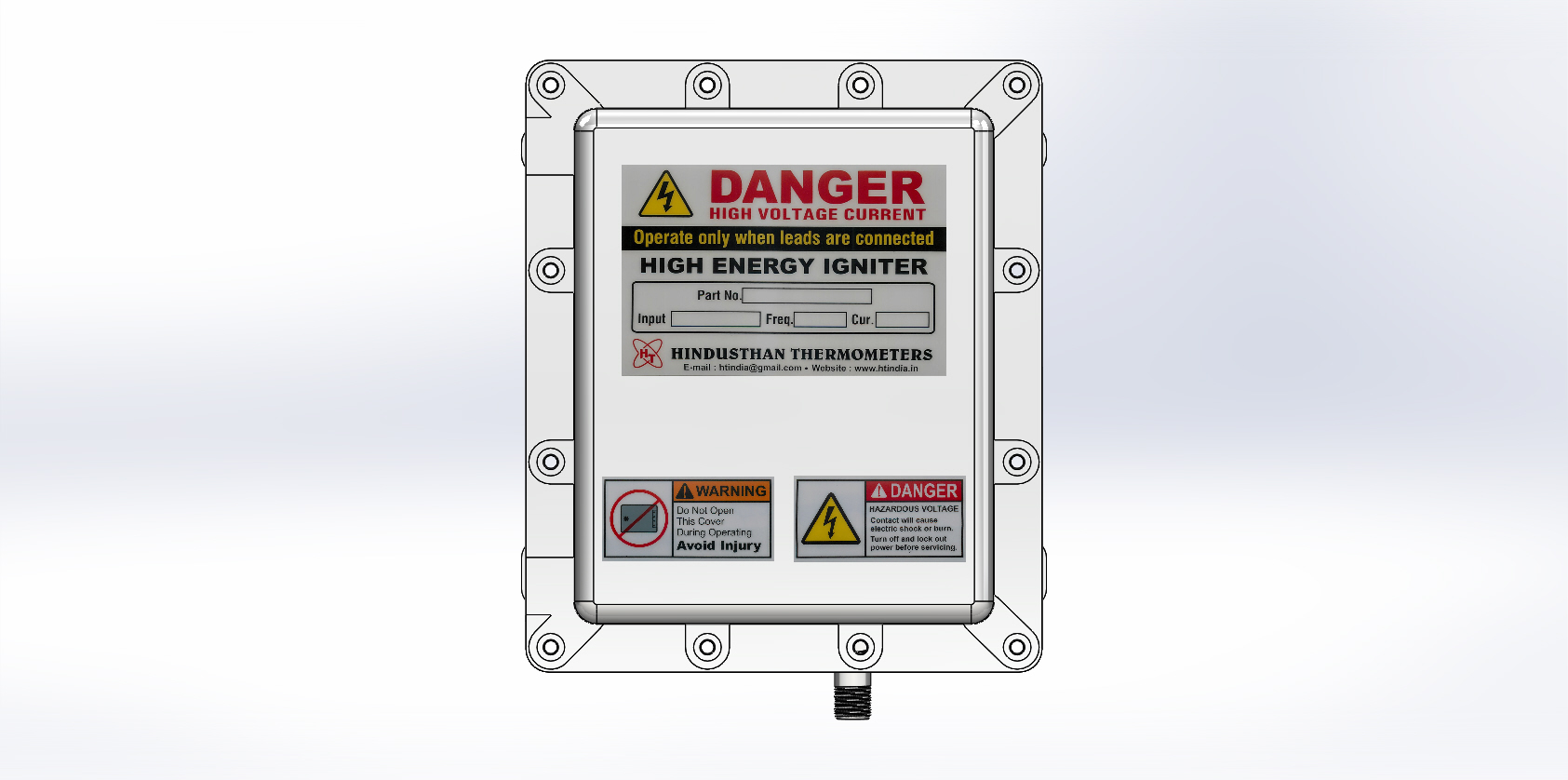

Part No: HT-HEA-EXD-12J-XX2
| Exciter Type | Spark Gap |
| Enclosure | CCOE, ATEX, Flameproof |
| Protection Class | Exd IIB + H2 T6 - IP 66 |
| Dimensions(HxWxD) | 270 X 320 X 166 mm |
| Other Energy available | 4 to 18 Joules |
| Operating Temperature | -25°C to 90°C |
| Internal Circuit No. | HT-HEA-XX2 |
