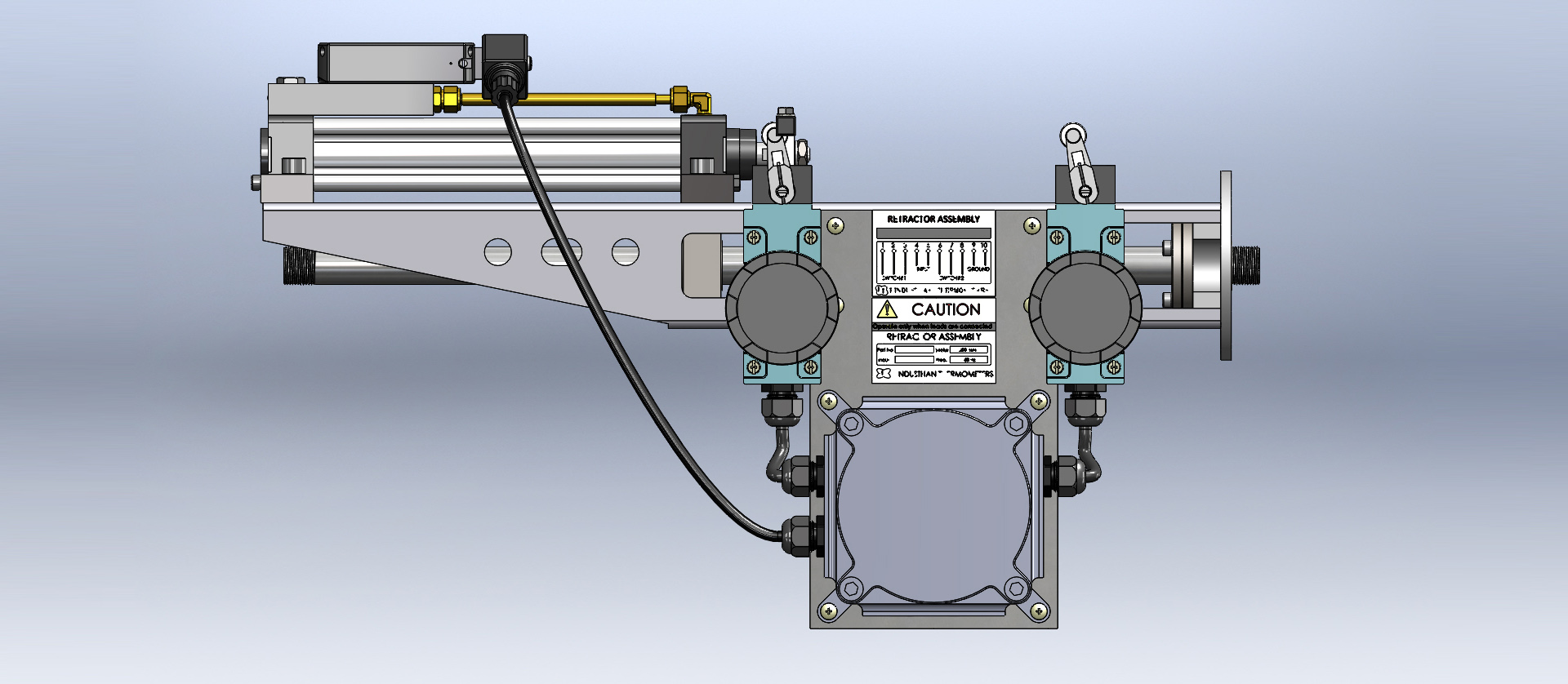

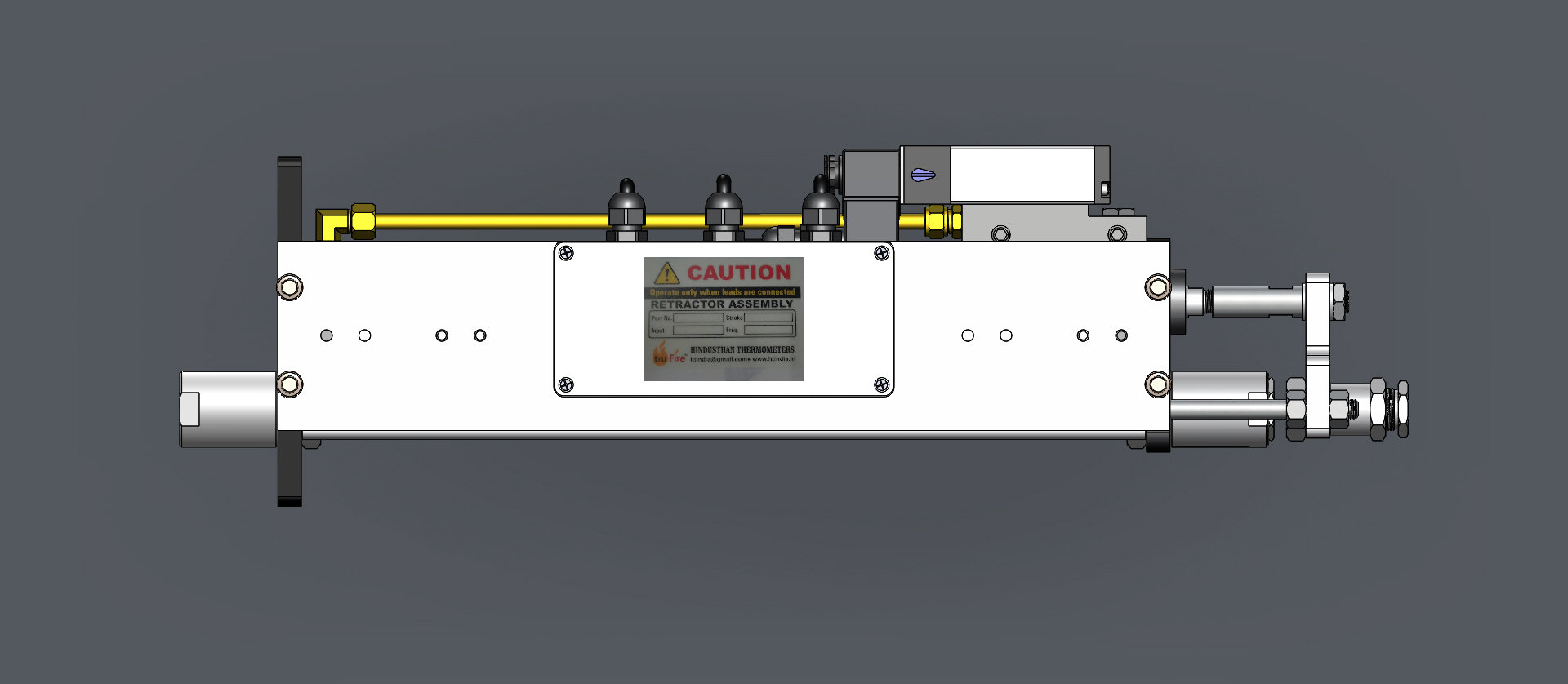

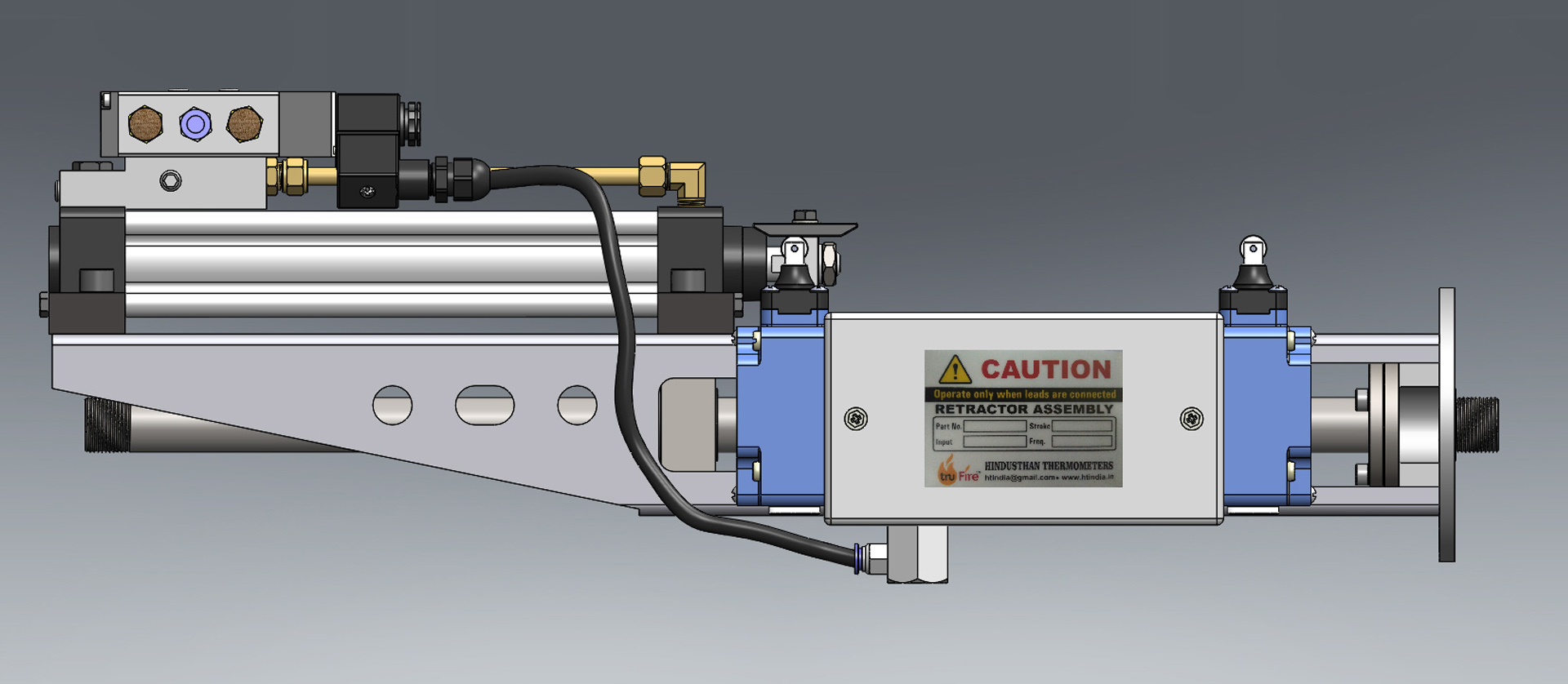

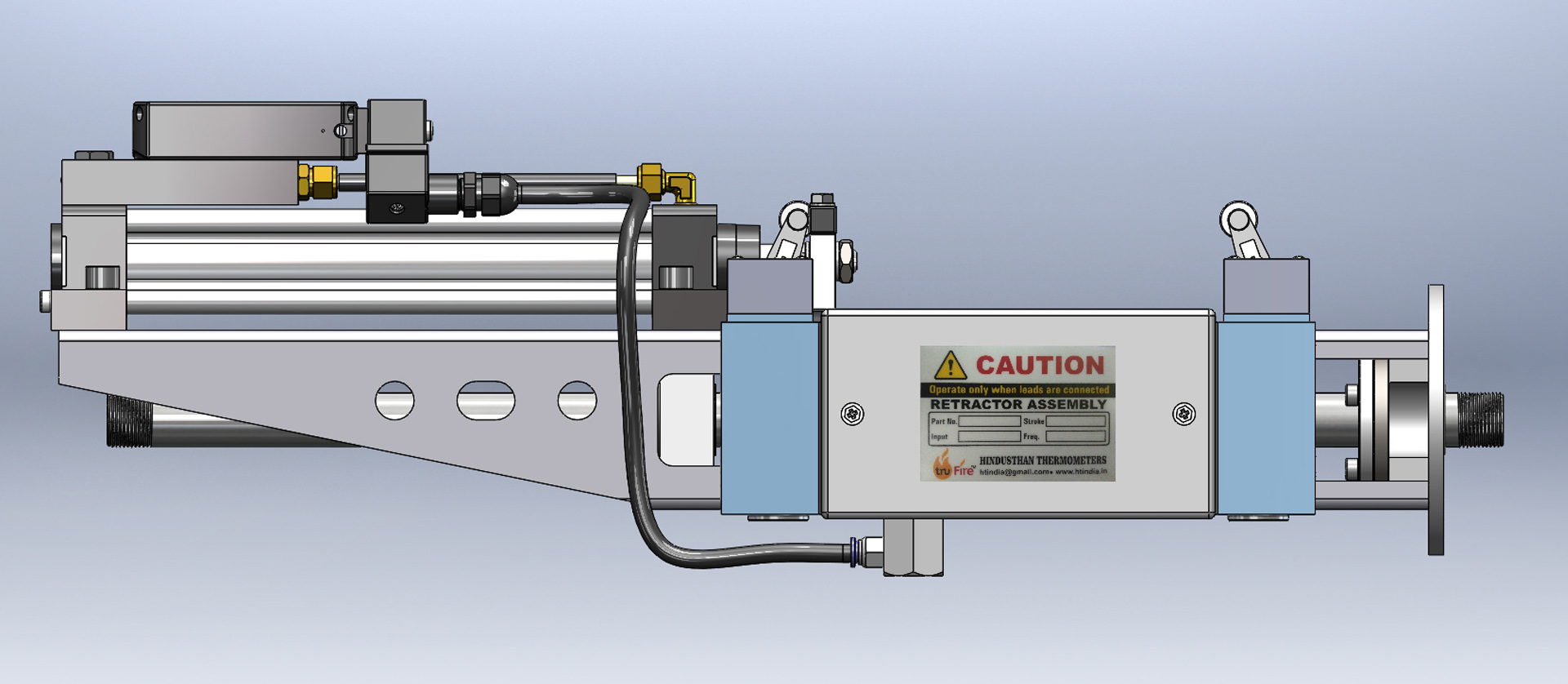

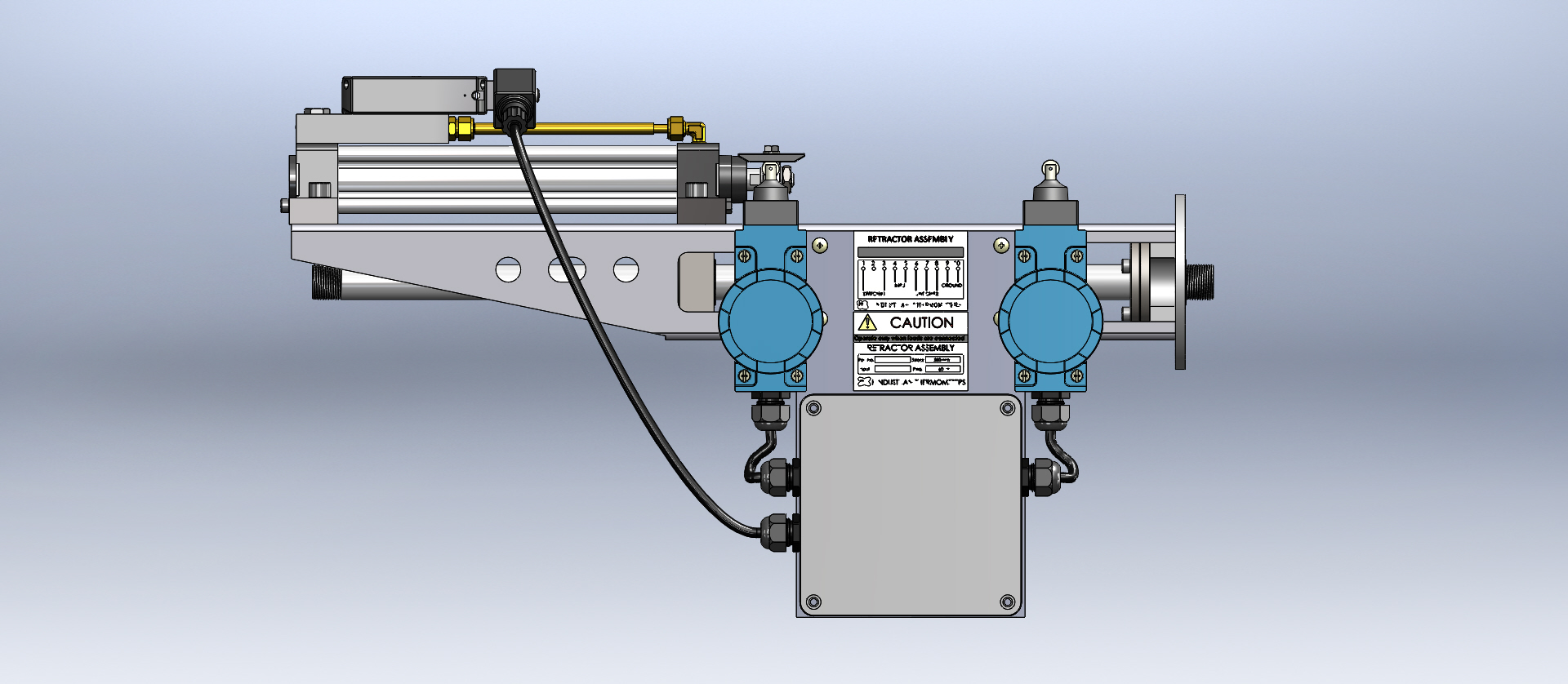

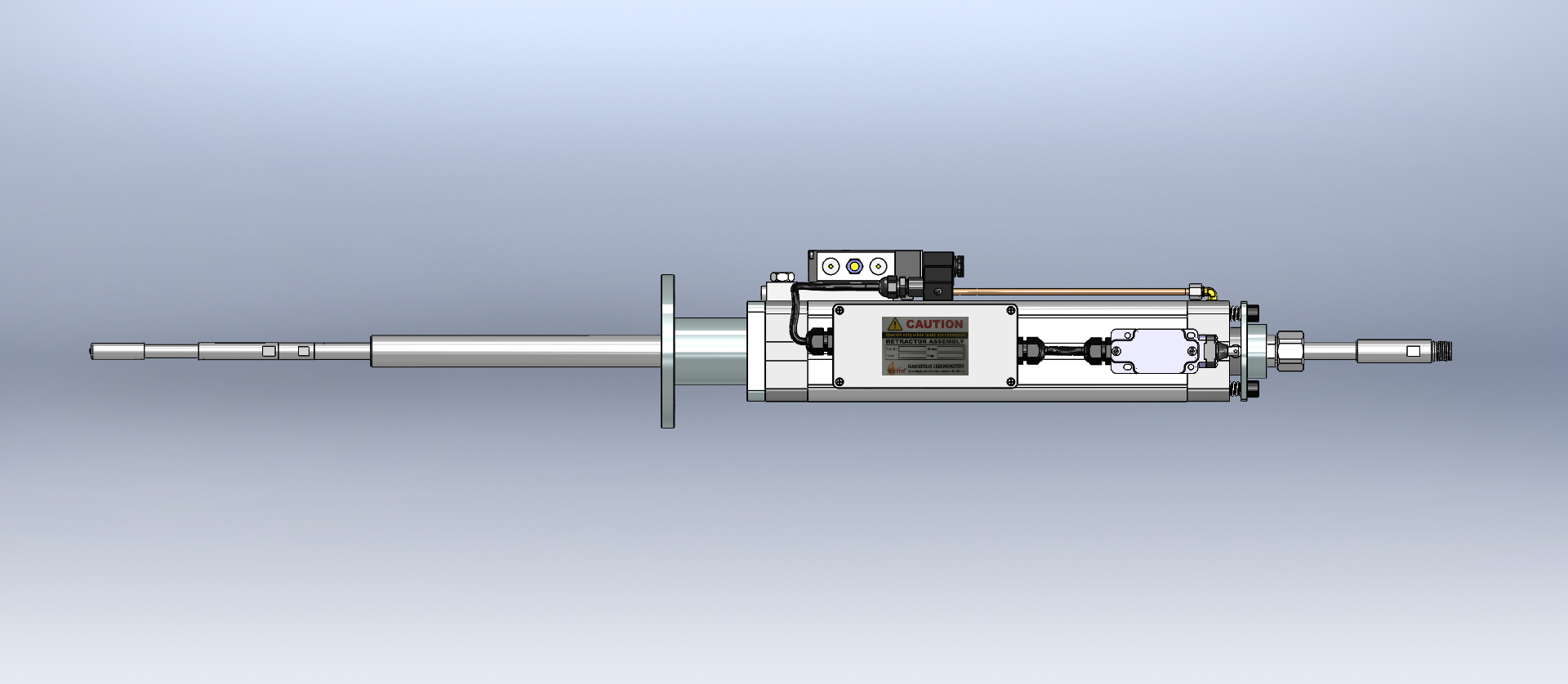

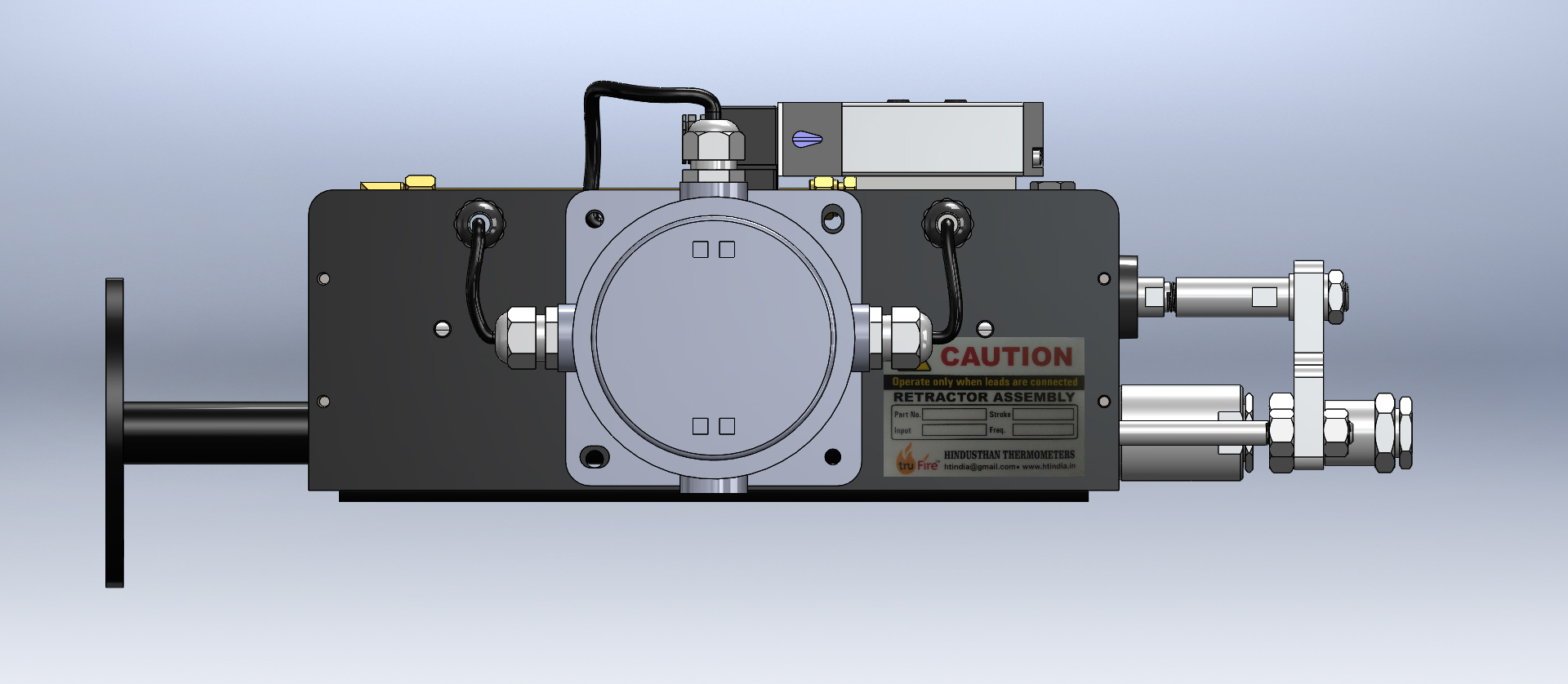

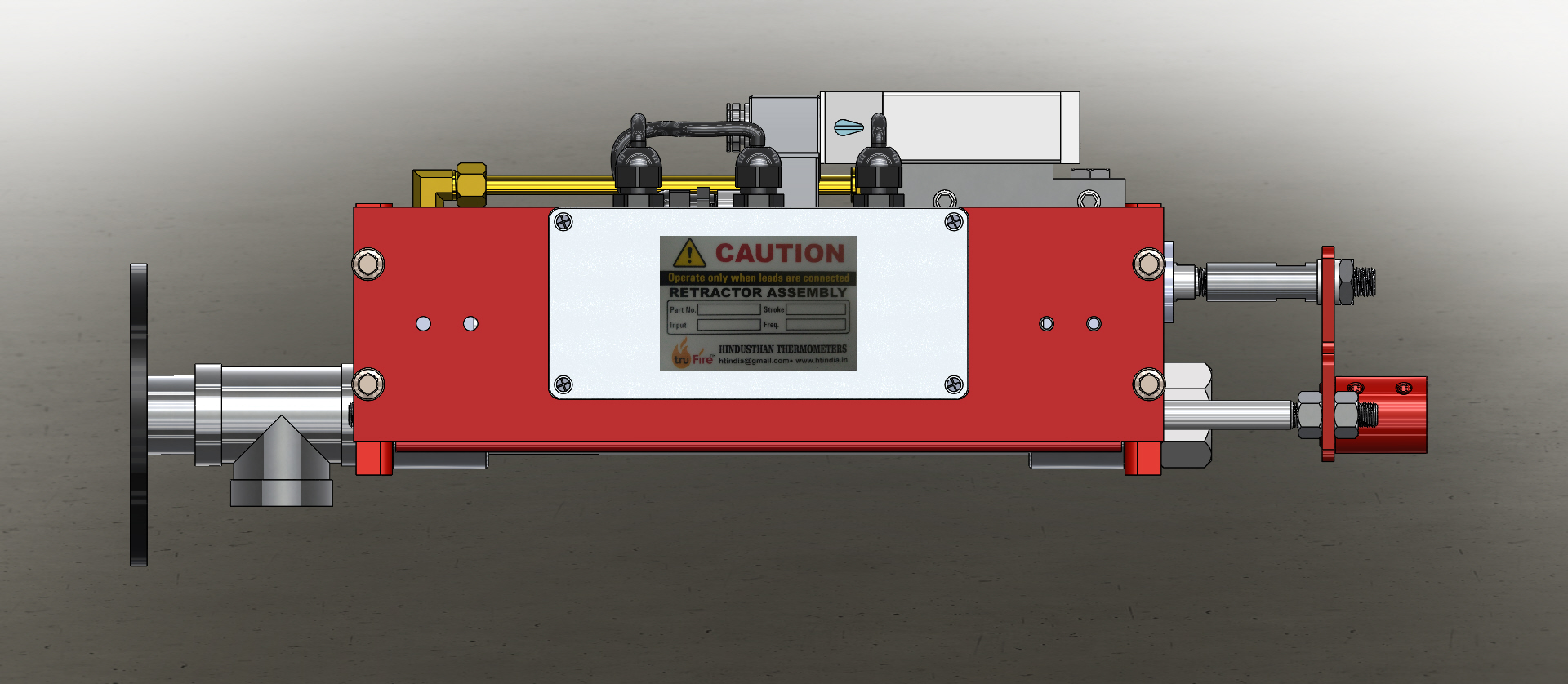

HEA Retractor Assembly
The Retractor Assembly is a pneumatically operated system to advance and retract the Spark Tip into the burner zone for a successful ignition or after the lapse of a preset time. The HEA Spark Rod with Spark Tip is inserted thru Guide tube until the Spark Tip extends into the Ignition zone.
- Double Acting Pneumatic Cylinder use with Dry and Clean Air Supply
- Solenoid Valves Coils available in Ex-proof or H Class
- Limit Switches or Proximity Sensors (also available for Hazardous areas)
- AC and DC inputs are available
- Long Life and maintenance free
SPECIFICATIONS
| - Air Cylinder/ Pneumatic Cylinder : | |
| Stroke Length | : 100 mm, 200 mm, 300 mm, 330 mm, 400 mm, 500 mm |
| Diameter | : 40 mm |
| Operating Pressure | : 70 to 100 PSI |
| -Solenoid Valve | : Two Position, 5 Way |
| Coil Voltage | : 110V AC, 240V AC or 24V DC, 220V DC |
| Frequency | : 50 -60 Hz |
| Mechanical | : 1/4" N PT Ports |
| Limit Switch/Proximity Sensors | : 2 Numbers |
| Voltage | : 110V AC, 240V AC or 24V DC |
| Frequency | : 50-60 Hz |
| Characteristic | : SPDT/ DPDT |
| Current | : 10 AMPS Continuous |
| Temperature Range | : -20°F to +225°F |
| Junction Box | |
| Enclosure | : IP 65, IP 66, NEMA 4 for Safe Area (also available for Hazardous Areas) |
| Conduit Entry | : Hole Dia 22 mm (or as per requirement) |
